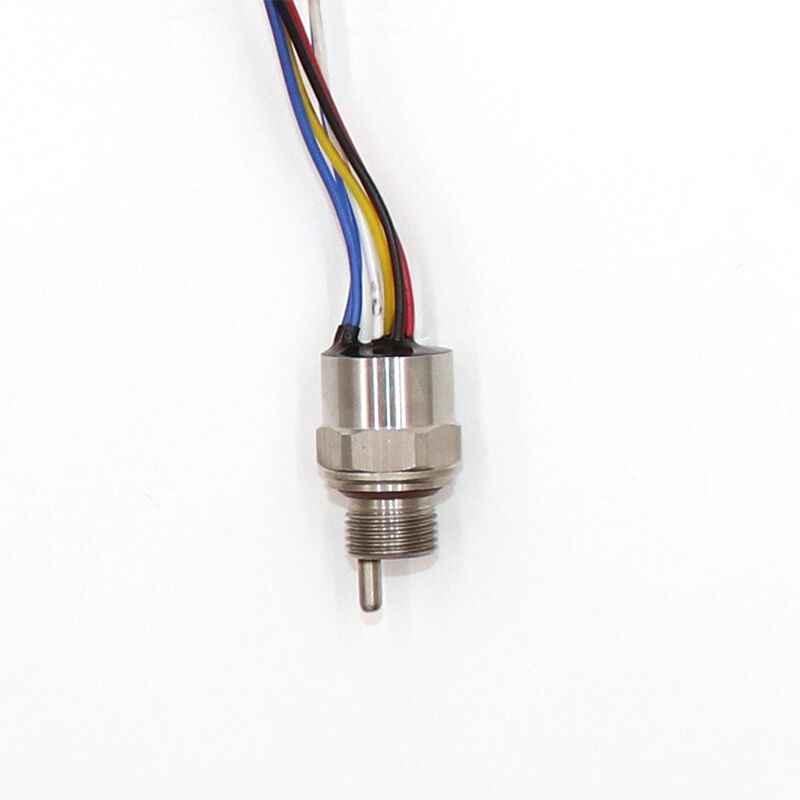

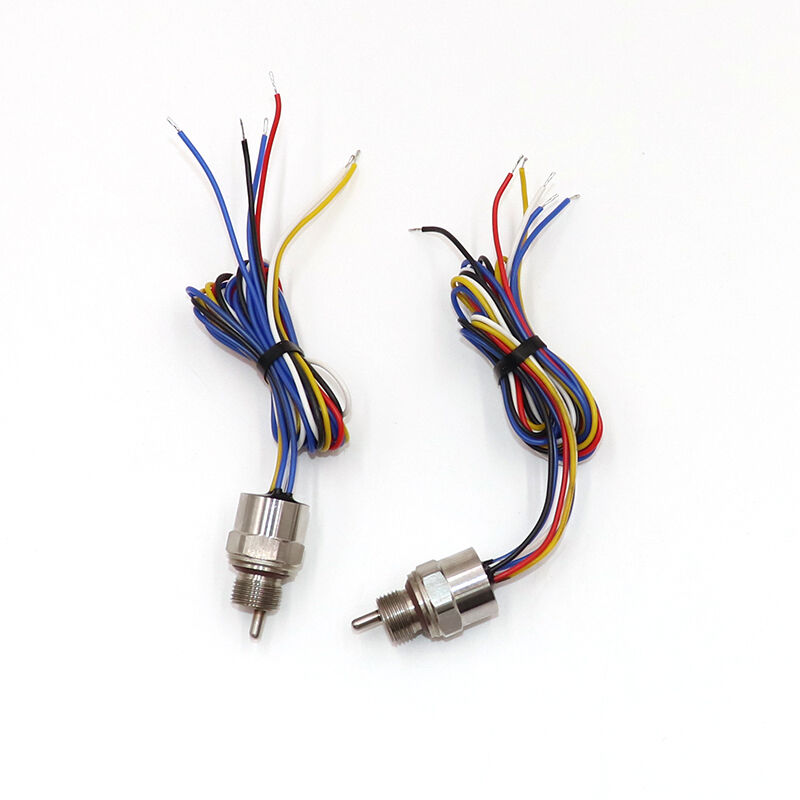

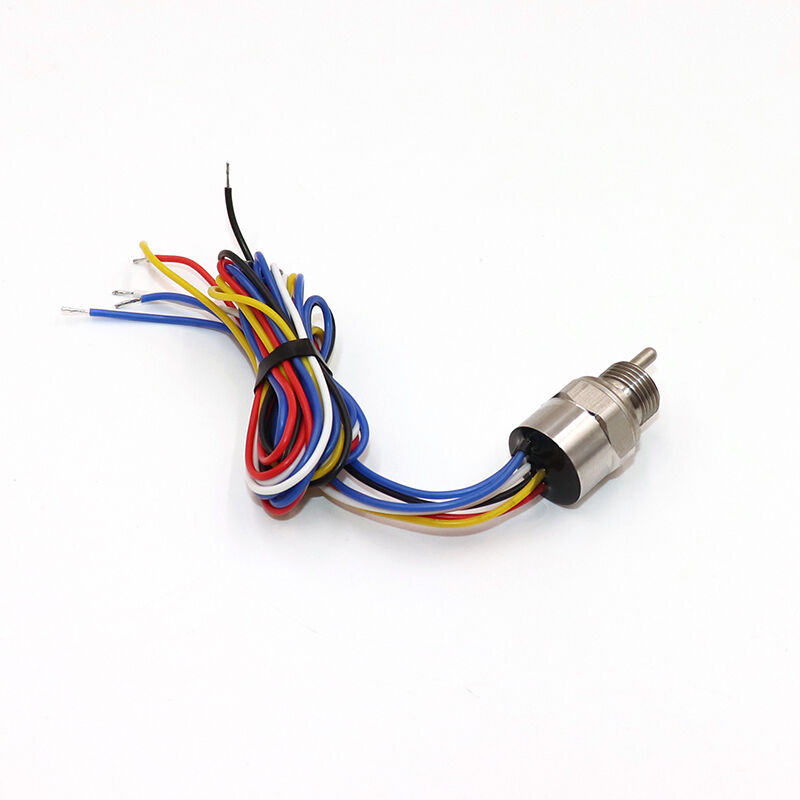

Name: WNK 0.5V~4.5V I2C Temperature Pressure Sensor for Coffee Machine and Water Dispenser
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK125PS
Price: 25 USD
Availability: InStock

Home > Products > Water Pressure Sensor >

WNK 0.5V~4.5V I2C Temperature Pressure Sensor for Coffee Machine and Water Dispenser

I2C temperature pressure sensor

water pressure sensor for coffee machine

low voltage pressure sensor with warranty

Place of Origin:

China

Brand Name:

WNK

Certification:

CE/ROHS

Model Number:

WNK125PS

Request A Quote

WNK 0.5V~4.5V I2C Temperature Pressure Sensor for Coffee Machine and Water Dispenser

Product Details

Power Supply:

5VDC,3.3~5VDC

Pressure Range:

0~5...50bar,(as Requriement)

Output:

0.5V~4.5V,I2C,(10%-90%Vcc Ratio Output)

Temperature Signal:

NTC

Process Connection:

M12x1,M10x1, Customized

Working Temperature:

-20℃~80℃

Storage Temperature:

-30℃~95℃

Protection Class:

IP68 Top-side Potting

Accuracy:

±1% F.S.

Highlight:

I2C temperature pressure sensor

water pressure sensor for coffee machine

low voltage pressure sensor with warranty

Payment & Shipping Terms

Minimum Order Quantity

Price

Delivery Time

5VDC Power Supply and ±1%FS Accuracy Pressure Sensor for Precise Industrial Measurements

Get Best Price

Industrial Pressure Transmitter with 5VDC Power Supply and Corrosion-Resistant SS304 Housing Materials

Get Best Price

Diffused Silicon Pressure Sensor 4-20ma 5V 24V Robust Transmitter Designed for Long Term Pressure Monitoring Performance

Get Best Price

100 Psi WNK Vacuum Pressure Transmitter 4 - 20ma 0 - 10V

Get Best Price

86-551-65369655

Contact Now

Product Description

The WNK125SPT is a miniaturized diffused-silicon integrated pressure and temperature sensor capable of simultaneously measuring pressure and temperature. Thanks to its compact design, it helps engineers save valuable space during product development. This pressure sensor offers high temperature stability and measurement accuracy, and is primarily used in coffee machines, water dispensers, air conditioners, smart water meters, water pumps, and other applications

WNK 0.5V~4.5V I2C Temperature Pressure Sensor for Coffee Machine and Water Dispenser

Are you manufacturer or trading company?

We are 22-year professional manufacturer of Pressure/ Level/ Temperature transmitters with 4~20mA, Hart, Profibus & FF protocols, pressure sensors with SPI, I2C, 4~20mA, 0.5~4.5V and etc, and electronic switches. We provide high quality products with high competitive factory price.

Whats your quality control system?

As an ISO9001:2015 certificated manufacturer, we have strict quality control system, and each product is done fatigue testing, calibration, temperature compensation before shipment. High quality is guaranteed.

Is there MOQ with your product?

We have no MOQ limits, 1pc for testing purpose is acceptable.

Can we print our logo on the products? Do you provide customized products?

Yes, we can print your logo on our products; OEM, ODM&customization are welcomed.

What is the warranty of your products? And after-sales service?

Our warranty time is 12 months after shipment, and our after-sales dpt will respond with your questions in 24hrs, remote instruction by PC network is always available.

What is lead time of your product?

We are factory, our lead time is always within 7 working days for products without customization, but lead time for flange products is a little longer.
