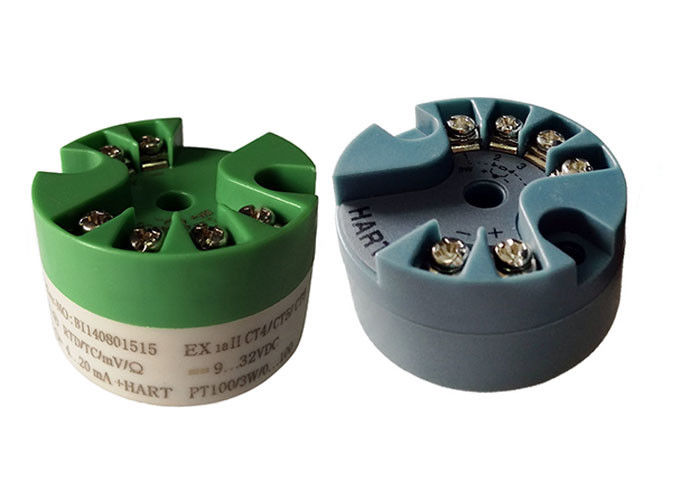

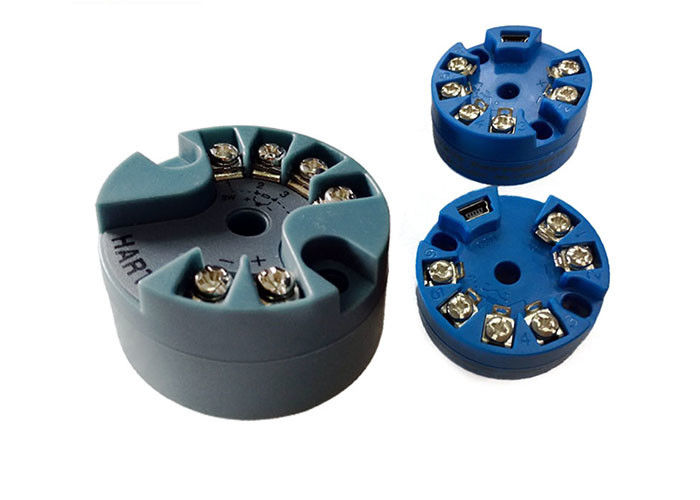

Rtd High Accuracy Temperature Transmitter 4-20mA Hart PT100 ISO9001 2015 Certification

Rtd High Accuracy Temperature Transmitter 4-20mA Hart PT100 ISO9001 2015 Certification
Rtd High Accuracy Temperature Transmitter 4-20mA Hart PT100 ISO9001 2015 Certification Rtd High Accuracy Temperature Transmitter 4-20mA Hart PT100 ISO9001 2015 Certification Rtd High Accuracy Temperature Transmitter 4-20mA Hart PT100 ISO9001 2015 Certification

Large Image :  Rtd High Accuracy Temperature Transmitter 4-20mA Hart PT100 ISO9001 2015 Certification

Product Details:
Place of Origin: Hefei, China
Brand Name: WNK
Certification: ISO9001:2015
Model Number: WNK65
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Sea-Worthy Packing or Air-Worthy Packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union
Supply Ability: 500PCS per month
Detailed Product Description
Output Signal: 4~20mA, Hart Power Supply: DC 9V~32V
Internal Code End Compensation Accuracy: ±0.5℃ Damp: 0-64s, Adjustable
Data Refreshing Frequency: 4 Times/second Stability: ±0.2%/year
Woring Ambient Temperature Range: -40℃~+85℃ Dimensions: φ44mm
Mounting Hole Distance: 33mm Anti Mechanical Vibration: 10~60HZ,0.21mm Sine Wave
High Light:

high accuracy temperature transmitter

,

industrial temperature transmitter



High Accuracy 4-20mA Hart PT100 / Rtd Head Mount Temperature Transmitter

WNK65 is suitable for four types of thermal resistors including Cu50, Cu100, PT100, PT1000 and eight types of thermocouple including E, J, B, K, N, R, S, T type. And it supports measurement of minivolt signal of -10~100mV and -100~1000mV, and resistive signal of 0~400Ω and 0~4000Ω. Isolation voltage is DC1000V.

Pls read the instruction carefully before using WNK65, and operate accordingly. If there is anything unclear in application, pls do not heisitate to contact us, we will come to you and solve problems as soon as possible.



WNK65 Temperature Transmitter

1. Supply power:DC9V~32V;

2. Output signal 4-20mA with HART protocol digital communication ( two-wire ), HART communication does not influent 4-20mA analog output;
3. Communicator or PC configuration and debugging software can do remote management;
4. Code end compensation of thermalcouple can choose internal temperature sensor, external temperature sensor, fixed temperature value and forbide code end compensation;
5. Internal code end compensation accuracy: ±0.5ºC
6. Damp: 0-64 seconds adjustable;
7. Data refreshing frequency: 4times/second;
8. Stability: ±0.2%/year;
9. Woring ambient temperature range: -40ºC~+85ºC;
10. Dimensions: φ44mm;
11. Mounting hole distance: 33mm;
12. Anti mechanical vibration: 10~60HZ,0.21mm sine wave;
13. Anti radio frequency interference: IEC61000-4-3, 20V/M,80~1000MHZ


2. Hardware components

2.1 Power

  1. Supplying power range is DC9V~32V, connected from port 1 and 2.
  2. Inlay opposite direction voltage protection circuit, misconnetion of power will cause no damage.

Note: Never connect 24V with sensor port! It will cause permanent damage of transmitter!

2.2 Wiring ports diagram

Rtd High Accuracy Temperature Transmitter 4-20mA Hart PT100 ISO9001 2015 Certification 0

2.3 Sensor connection ports

Rtd High Accuracy Temperature Transmitter 4-20mA Hart PT100 ISO9001 2015 Certification 1

Main sensors accuracy parameters:


Sensors type Sensor range Minimum range Digit accuracy D/A accuracy
2,3,4- wire thermal resistor
Cu50 -50~150 ºC 10 ºC ±0.15 ºC 0.01%
Cu100 -50~150 ºC 10 ºC ±0.15 ºC 0.01%
PT100 -200~850 ºC 10 ºC ±0.15 ºC 0.01%
PT1000 -200~850 ºC 10ºC ±0.1 ºC 0.01%
2,3,4- wire resistor
400Ω 0~400Ω 10Ω 0.01Ω 0.01%
4000Ω -0~4000Ω 10Ω 0.01Ω 0.01%
Voltage
100mV -10~100 mV 10 mV 0.01 mV 0.01%
1000mV -100~1000mV 10 mV 0.01 mV 0.01%
Thermocouple
B type 150~1820ºC 25ºC ±1.0 ºC 0.01%
E type -200~1000ºC 25ºC ±0.4 ºC 0.01%
J type - 210~1200ºC 25ºC ±0.4ºC 0.01%
K type -200~1372ºC 25ºC ±0.4ºC 0.01%
N type -200~1300ºC 25ºC ±0.4ºC 0.01%
R type 0~1768ºC 25ºC ±0.8ºC 0.01%
S type 0~1768ºC 25ºC ±0.8ºC 0.01%
T type -200~400ºC 25ºC ±0.4 ºC 0.01%





Competitive Advantages:

1. Founded in 2004, over 13 year professional research, developing and production experience;
2. Experienced and professional R&D team to provide customization services;
3. Producing transmitter core elements- PCB, supplying PCB for transmitter producers;
4. Highest accuracy up to 0.05%FS;
5. Various outputs I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other analog outputs;
6. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
