RTD PT100 4-20mA Head Mounted Temperature Transmitter with English Calibration Software

China RTD PT100 4-20mA Head Mounted Temperature Transmitter with English Calibration Software supplier

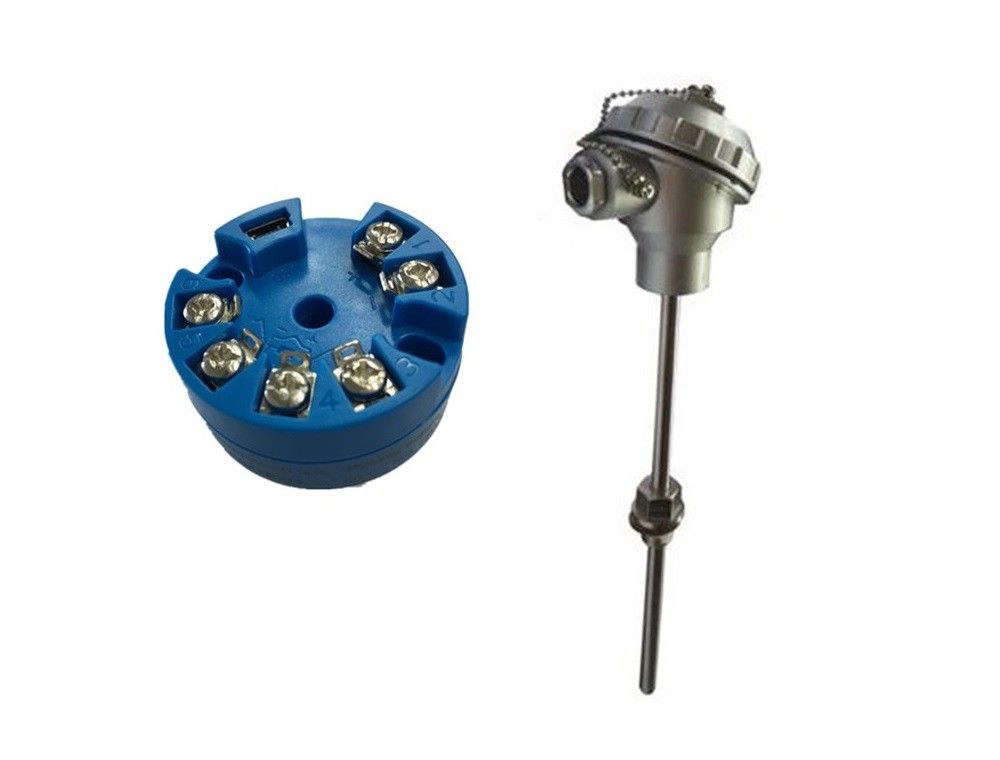

Large Image :  RTD PT100 4-20mA Head Mounted Temperature Transmitter with English Calibration Software

Product Details:

Place of Origin: Anhui, China
Brand Name: WNK
Certification: ISO
Model Number: WNK-623

Payment & Shipping Terms:

Minimum Order Quantity: 10 pcs
Price: Negotiable
Packaging Details: Standard expoort carton packing
Payment Terms: T/T, Western Union, MoneyGram
Contact Now
Detailed Product Description
Input: RTD PT100, PT1000 Output: 4-20mA 2 Wire
Temperature Range: Pt100 (-200~650℃) Display: No
Power Supply Range: 24V (standard) Accuracy: 0.5%

RTD PT100 4-20mA Head Mounted Temperature Transmitter with English Calibration Software



Instruction



WNK623 4~20mA two-wire integrated circuit board is specifically designed for intelligent temperature transmitters. With the highly-integrated circuit cored with microprocessor, it reliably achieves PT100 thermal resistor signal acquisition, processing and loop output, and also provides single bus digital interface and dedicated configurator to achieve full digital debugging and calibration. it particularly well-suited for producing and manufacturing two-wire intelligent temperature transmitters.



Features

  • Two-wire work mode
  • Pt100 thermal resistance full measurement range
  • Thermal resistance four-wire measurement and automatically eliminating the lead resistance
  • Thermal resistance disconnection fault prompts and output processing;
  • Independent setting for temperature transmission output range
  • High accuracy, low temperature drift
  • Single wire communication interface, dedicated configurator debugging
  • Unique output migration, reverse function
  • Highly integrated, Anti-jamming design and Hardware and Software watchdog

Technical Data

Power supply: DC 8 ~ 36V( Recommend DC 24V )
Signal Range: Pt100 (-200~650℃)
Temperature resolution: 0.01℃( Measuring and Transmitting )
Sampling rate: 10 times/second
Current output resolution: 2uA
Accuracy of output: ±0.2%
Temperature drift <50ppm/℃
Operating temperature: Temperature-20~+80℃ Humidity <85%RH.
Power Consumption <0.2W
Dimension: Diameter 44mm,Height 20mm,Mounting hole 33~36mm
