4-20ma Smart Pt100 Temperature Transmitter With Rtd Thermocouple Input

China 4-20ma Smart Pt100 Temperature Transmitter With Rtd Thermocouple Input supplier
4-20ma Smart Pt100 Temperature Transmitter With Rtd Thermocouple Input supplier 4-20ma Smart Pt100 Temperature Transmitter With Rtd Thermocouple Input supplier

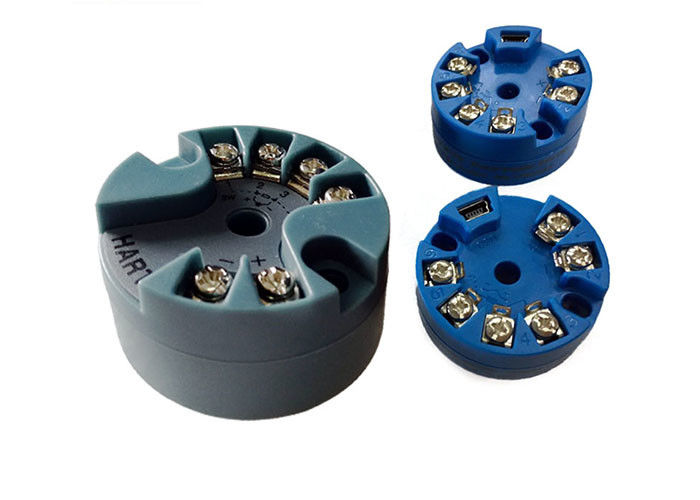

Large Image :  4-20ma Smart Pt100 Temperature Transmitter With Rtd Thermocouple Input

Product Details:

Place of Origin: Anhui, China
Brand Name: WNK
Certification: ISO
Model Number: WNK-621

Payment & Shipping Terms:

Minimum Order Quantity: 5 pcs
Price: Negotiable
Packaging Details: Standard expoort carton packing
Payment Terms: T/T, Western Union, MoneyGram
Contact Now
Detailed Product Description
Input: Thermocouple, RTD Output: 4-20mA With Hart (2-Wire)
Used For: Rtd, Tc, Ohm,Mv Display: No
Power: 12-32V DC Long-term Accuracy: 0.5%FS

4-20ma Smart Pt100 Pt1000 Head Mounted Temperature Transmitter With Rtd, Thermocouple Input





Quick Information

WNK65 and WNK621 are recommended in application requiring amplification of RTD or T/C signals to carry to a long distance or guard against heavy field electrical noise. The transmitter converts various input to an analog signal for direct interface with Indicators, recorders, controllers, PLC, DCS, systems can be used for a wide range of applications in process control, automatic machinery and hydraulic or pneumatic system.




Features

  • Two-wire work mode
  • Pt100,Cu50,Cu100, Pt1000 Four thermal resistance full measurement range
  • K, S, R, B, N, E, J, T Eight thermocouples full range measurement
  • Cold end automatic compensation
  • Thermal resistance three-wire measurement automatically eliminating the lead resistance
  • Thermal resistance/ Thermocouple disconnection fault prompts and output processing;
  • Independent setting for temperature transmission output range
  • High accuracy, low temperature drift



Specifications


Measuring media liquid, gas and steam
Measuring range -270~800 ºC (PT100 thermal resistor)
0~1300ºC, (Thermocouple K)
Input Thermocouple, RTD, MV, Resistive sensor
Power supply range 9~45V (9~24V, Ex)
Output signal 4~20mA/Hart/Profibus PA
Digital Accuracy ±0.01ºC, PT100 input
Internal cold end compensation error <0.25ºC±0.1%/10ºC
Temperature drift ±0.05%/10ºCfull scale range
0.1% between-10°C to 60°C
Effect of power supply on range <0.005%/V full-scale range
Long term drift <0.1/year
Ambient temperature Ambient temperature Storage temperature
T4 Safe operation(T6)
-40...85ºC -40...60ºC -40...95ºC
Protection Class IP66/67
Relative humidity ≤98%, condensation allowed
Electromagnetic compatibility Accordance with EN 61 326

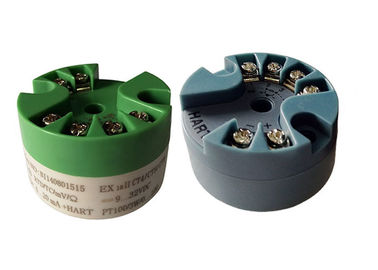

4-20ma Smart Pt100 Temperature Transmitter With Rtd Thermocouple Input
