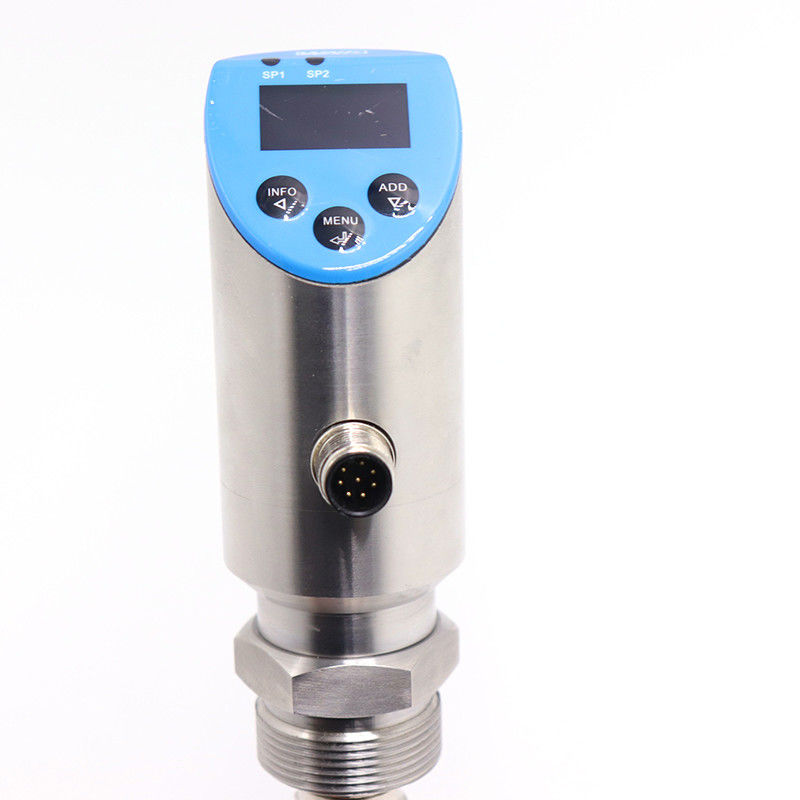

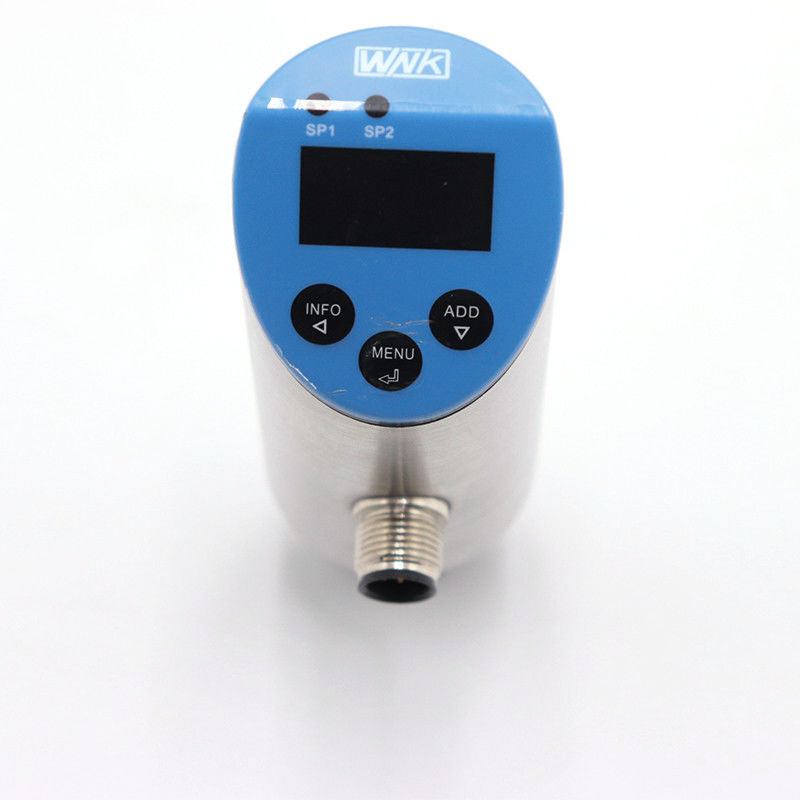

Electronic Pressure Transmitter Switch / 4-20mA Water Pressure Sensor Switch

Electronic Pressure Transmitter Switch / 4-20mA Water Pressure Sensor Switch
Electronic Pressure Transmitter Switch / 4-20mA Water Pressure Sensor Switch Electronic Pressure Transmitter Switch / 4-20mA Water Pressure Sensor Switch Electronic Pressure Transmitter Switch / 4-20mA Water Pressure Sensor Switch

Large Image :  Electronic Pressure Transmitter Switch / 4-20mA Water Pressure Sensor Switch

Product Details:
Place of Origin: China
Brand Name: WNK
Certification: CE Rohs
Model Number: WNKSPS
Payment & Shipping Terms:
Minimum Order Quantity: 1 pieces
Price: Negotiation
Packaging Details: standard export packaging
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 2000 pieces per week
Detailed Product Description
Media: Liquid, Gas And Steam Range: -100KPa~60MPa
Output: 4-20mA, 0-5V, 0-10V, RS485 Accuracy: 0.5%F.S
Supply: 12-30V DC Switch Type: NO/NC
Display: OLED
High Light:

pressure control switch

,

stainless steel pressure switch

Electronic pressure switch transmitter and display in one device
Product Description



Introduction - Smart SST Electronic Pressure Switch for Water Pump, Compressor

The pressure switch SPS is designed for pressure monitoring and measure-ment in liquid and gaseous media. The SPS is suited for general industrial applications such as machine and plant engineering, in machine tool systems, in hydraulic and pneumatic systems, for pressure monitoring and control and for pumps and compressors. It is pressure switch, transmitter and display in one and the same device.

Product Features - SPS Intelligent Electronic Pressure Switch with OLED Display

1. Smart type, with PNP/NPN switching.
2. Swithing points settable, NO/NC availalbe
3. With OLED display, with 5 digit available.
4. Provide RS485 communication for option.

Spec



SPS Intelligent Electronic Pressure Switch with OLED Display
Applicable media
Liquid, Gas, Steam
Pressure measurment
Gauge Pressure, Absolute pressure
Pressure range
-100kPa~60MPa
Output Signal
2×PNP + 0V~5VDC/10VDC + MODBUS(RS485)
2×PNP + 0mA/4mA~20mADC + MODBUS(RS485)
Accuracy
0.5% FS
Stability
±0.3% FS/year
Switch current
1.0A(Max.)
Switching type
Normally open / closed (settable)
Display
OLED (Optional)
Housing material
304 stainless steel
Mechanical connection
M20×1.5; 1/2-18NPT, 1/4NPT, Customize
Storge temperature
-40~80℃
Process temperature
-30~80℃
Protection class
IP65



Electronic Pressure Transmitter Switch / 4-20mA Water Pressure Sensor Switch 0

SPS-1

SPS







Electronic Pressure Transmitter Switch / 4-20mA Water Pressure Sensor Switch 3







Electronic Pressure Transmitter Switch / 4-20mA Water Pressure Sensor Switch 4




FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea
