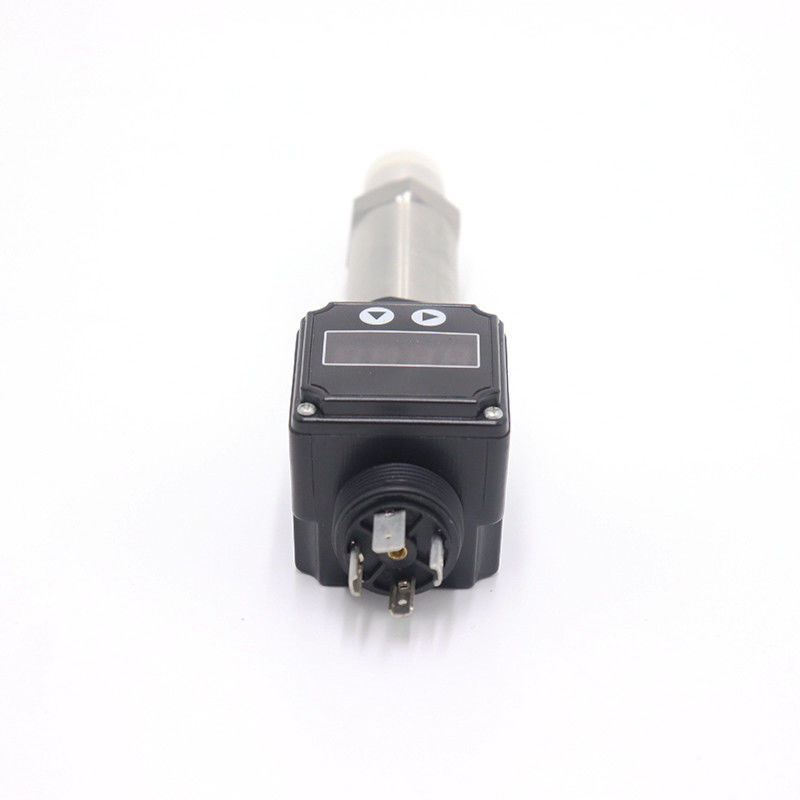

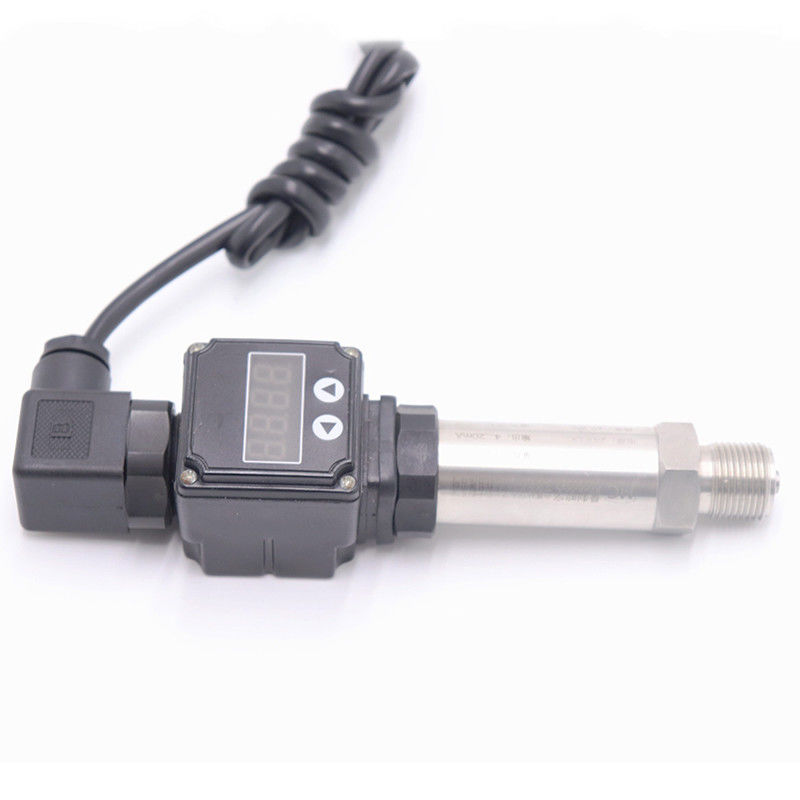

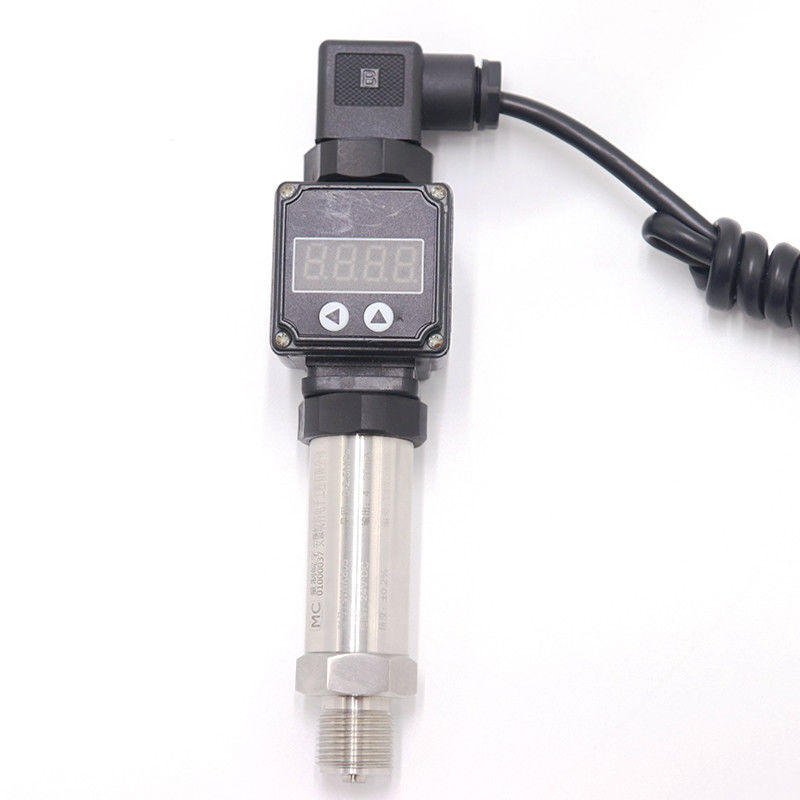

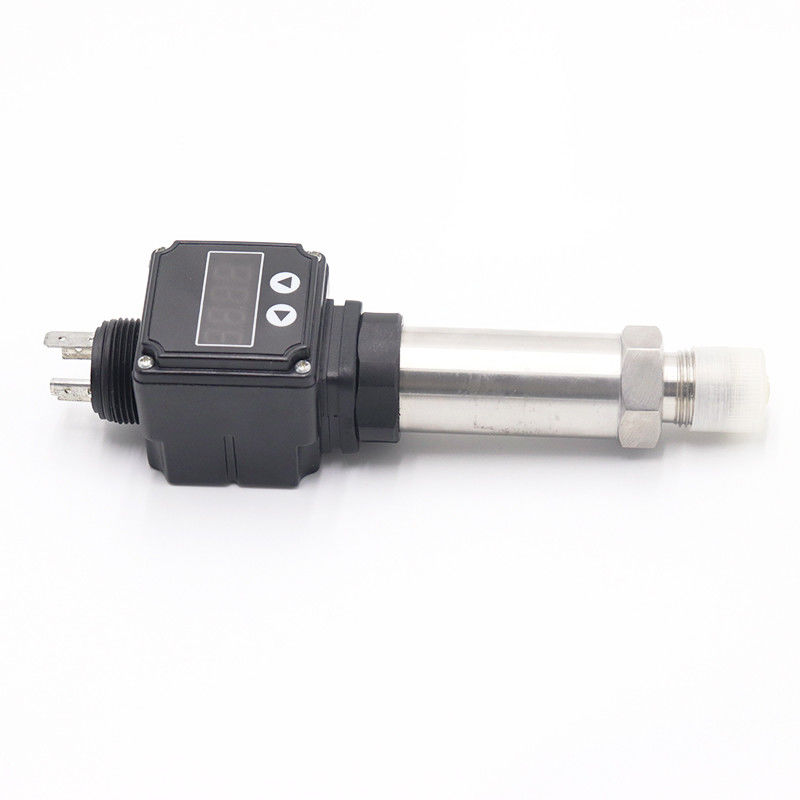

4-20mA Air Pressure Transducer Sensor WNK805 Anti - Corrosion 10.5-55V DC

air pressure transmitter

mini pressure sensor

Place of Origin:

Anhui, China

Brand Name:

WNK

Certification:

CE, SGS, ISO9001

Model Number:

WNK805

Request A Quote

Product Details

Model Number:

WNK805

Accuracy::

0.2%FS,0.5%FS

Measured Media:

Liquid, Gas And Steam

Output Signal:

4~20mA,1-5V(optional)

Pressure Range:

-100KPa~60MPa

Power Supply:

10.5-55V DC, 10.5-30V DC

Protection Class:

IP65

Ambient Temperature:

-40~85℃

Housing Material::

304 Stainless Steel

Highlight:

air pressure transmitter

mini pressure sensor

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

Negotiation

Packaging Details

Sea-Worthy Packing or Air-Worthy Packing

Payment Terms

D/A, L/C, T/T, Western Union, MoneyGram

Supply Ability

5000 Piece/Pieces per Month Pressure Transmitter

Liquid / Gas Air Pressure Sensor Differential Pressure 0.5 - 4.5VDC Brass Housing Material

Get Best Price

Video

Fuel Pressure Regulator Air Pressure Sensor -20 - 70°C Work Temperature For Trailblazer

Get Best Price

Video

Brass Housing Material Air Pressure Sensor Sealing Pressure 1%FS Accuracy

Get Best Price

Video

Mini Gas Pressure Transmitter Air Pressure Transducer With Customized Electrical Connection

Get Best Price

86-551-65369655

Contact Now

Product Description

WNK805 4-20mA pressure transmitter/pressure sensor/pressure transducer

Name: 4-20mA Air Pressure Transducer Sensor WNK805 Anti - Corrosion 10.5-55V DC
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK805
Price: 20.00 USD
Availability: InStock

Our company's main products include pressure sensors and transmitters, temperature transmitters and other measuring instruments. The company's products and services are widely applied in internet of things and smart cities such as: smart water, smart gas and smart fire.

Products Description

WNK805mA IP65 Capacitive IIC Lora Small Size Pressure Sensor

WNK805 Gauge/Absolute Pressure Transmitter (Diffused silicon sensor)
Applicable media	Liquid, Gas, Steam
Pressure range	-100kPa-0, 0-0.2~-100kPa, 0-0.2~1000kpa, 0-60MPa, 70MPa
Pressure measurement	Gauge Pressure, Absolute pressure, Negative pressure, Sealing pressure
Accuracy	0.2% FS, 0.5% FS
Stability	±0.25% FS/year
Zero drift	50% of full range span.
Max overload	200% of sensor range
Bandwidth / Response time	1 millisecond (Optional for analog type)
Output signals	4~20mA, 1-5V(optional)
Display	LED (Optional)
Housing material	304 stainless steel
Mechanical connection	M20×1.5; 1/2-18NPT, 1/4NPT, G1/4, Customize
Protection class	IP65
Power supply	Non-explosion: 10.5~45V DC
Power supply	EEX ia:8~30 V DC
Ambient temperature	-40~85℃
Process temperature	-40~85℃
Process temperature	-40~150℃ (diaphragm type, clamp type)
Compensation temperature	-10~70℃
Features	1. WNK805 integral pressure transmitter adopts stainless steel shell structure, built in stainless steel oil filled sensor, intelligent digital circuit. 2.With precise temperature characteristic compensation, it can be used reliably and stably 3.It is suitable for gas, liquid, steam pressure measurement and pressure measurement with corrosive media.

FAQ

Q: Are you manufacturer or trading company?

A: We are professional pressure/level/temperature measurement manufacturer since 2004.

Q: What’s your quality control system?

A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Can we use our logo on the products? Do you provide customized products?

Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome

Q: What is yor MOQ?

A: We have no MOQ limits, small quantity order is acceptable.

Q: What's the transport?

A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
