Product Details:
Payment & Shipping Terms:
|
| Output: | 4...20mA/0...5V+PNP+MODBUS | Accuracy: | ≤0.5%FS |
|---|---|---|---|
| Measuring Range: | -0.1...0.1MPa To 60MPa | Long-term Stability: | ±0.3%FS/year |
| Power Supply: | 12...30V DC | Display: | OLED |
| Electrical Connector: | M12 | Ingress Protection: | IP65 |
| OEM Service: | OEM, ODM | Housing Material: | SS304 |
| Easy Installation: | Housing Against Process Connection Rotatable 330° | Application: | Oil&gas, Petrol, Petrochemical, Chemical Industry, Metallurgy, Pharmacy |
| High Light: | liquid level control switch,stainless steel pressure switch |
||

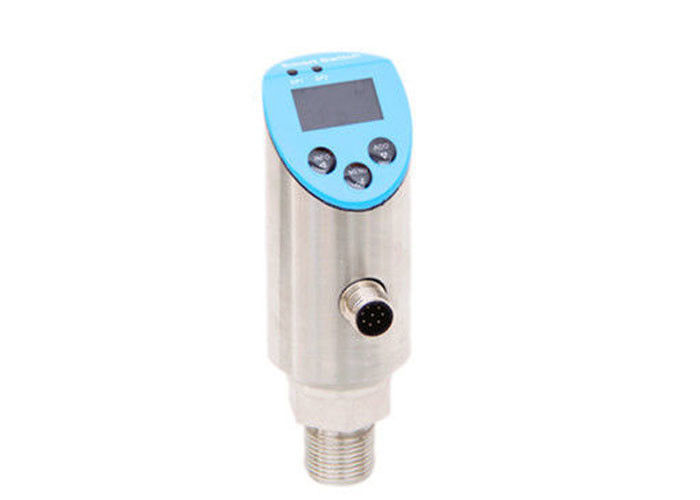

Smart Electronic Pressure Switch with 4~20mA+PNP Output
SPS pressure switch is designed for pressure monitoring and measurement in liquid and gaseous media. The SPS is suited for general industrial applications such as in mechanical manufacturing, in machine tool systems, in hydraulic and pneumatic systems, for pressure monitoring and control and for pumps and compressors. It is pressure switch, transmitter and display in one device. In its standard configuration it has optional two switching outputs (PNP or NPN), an analog output signal (0...20mA| 4…20 mA or 0...5V| 0…10 V) as well as with RS485 Link.
Quick Information:
Detailed Technical Info:
| Product name | Electronic Smart Pressure Switch |
| Measuring range | -0.10.1MPa to 60MPa |
| Measuring media | Gas & Fluid |
| Accuracy | ≤0.5%FS |
| Supply power | 1230V DC |
| Temp. error | ±0.02%FS/ºC(Zero/ Full Span) |
| Long-term stability | ±0.3%FS/Year |
| Analog output accuracy | ≤±0.2%FS |
| Output configurations | 2×PNP + 0V~5VDC/10VDC + MODBUS |
| 2×PNP + 0mA/4mA~20mADC + MODBUS | |
| Switch current | 1.0A(Max.) |
| Switching type | Normally open / closed (settable) |
| Switching reponce time | <10ms |
| Swith delay | 0.00s~1000.0s |
| Switching motion mode | Delay or windows mode |
| Analog signal output and max ohmic load RL | Current output 0/4...20mA, 20...4mA RL≤0.5k |
| Voltage output 0...5/10v, 5/10...0v RL>10k | |
| Screen display | OLED |
| Menu language | Chinese and English |
| Switch indicating | 2 Red LED |
| Displaying units | psi,bar,mbar,Pa,kPa,MPa |
| Buttons | 3 blue back-lighted touch buttons |
| Supplementary variables displaying | Environment temperature, analog output value, max peak value,mini peak value |
| Supplementary variables displaying way | Fixed displaying or switch display by INFO button |
| Working temperature | -30-80ºC |
| Media temperature | -30-80ºC |
| Storage temperature | -40ºC~80ºC |
| Electromagnetism compatible | GB/T 17626.2/3/4-2006 |
| Shock resistance | ≤10g/10Hz...500Hz(IEC 60068-2-6-2007) |
| Vibration resistance | ≤50g/11ms(IEC 60068-2-27-2008) |
| Protection class | IP65 |
Competitive Advantages:
1. Founded in 2004, over 13 year professional research, developing and production experience;
2. Experienced and professional R&D team to provide customization services;
3. Producing transmitter core elements- PCB, supplying PCB for transmitter producers;
4. Highest accuracy up to 0.05%FS;
5. Various outputs I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other analog outputs;
6. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
