PT100 Electronic Digital Temperature Switch With PNP + 4~20mA + Modbus Output

PT100 Electronic Digital Temperature Switch With PNP + 4~20mA + Modbus Output

2 wire temperature transmitter

pump control switch

Place of Origin:

Hefei, CN

Brand Name:

WNK

Certification:

SGS, ISO9001:2015

Model Number:

STS

Contact Us
Request A Quote
Product Details
Output:
4...20mA/0...5V+PNP+MODBUS
Accuracy:
≤±0.5℃
Measuring Rang:
-50...260℃
Switch Type:
Normally Open Or Closed
Switch Delay:
0~1000s
Sensor Input:
PT100, PT1000
Electrical Connector:
M12 5PIN Or 8PIN
Ingress Protection:
IP65
Power Supply:
12...30V DC
Display:
OLED
Long-term Stability:
±0.3%FS/year
OEM Service:
OEM, ODM
Highlight:

2 wire temperature transmitter

,

pump control switch

Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Negotiable
Packaging Details
Sea-Worthy Packing or Air-Worthy Packing
Delivery Time
5-8 work days
Payment Terms
T/T, Western Union
Supply Ability
5000pcs per month
Product Description

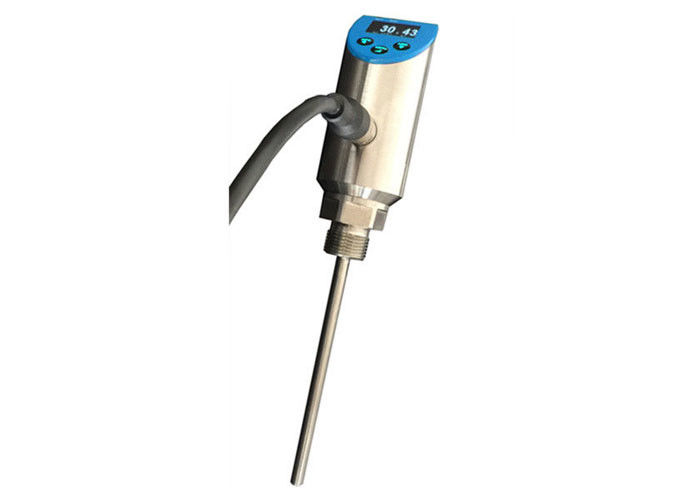

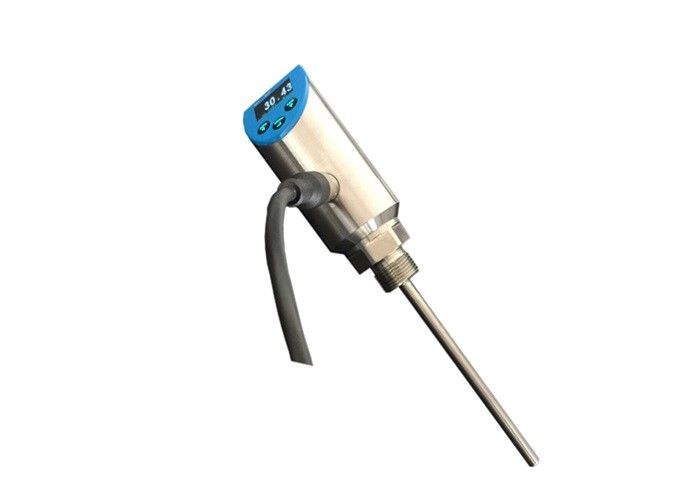

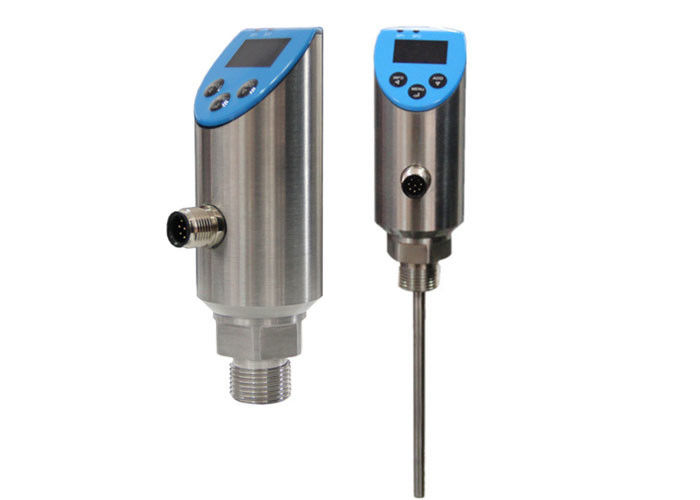

PT100 Electronic Digital Temperature Switch With PNP + 4~20mA + Modbus Output



STS supports functions of switch delay, normally open, normally closed, switching point settable, display temperature peak value and environment temperature and other functions. It can connect with PT100 and PT1000 temperature sensors.



The temperature switch STS is robustly designed and very easy to use. The STS is suited for temperature monitoring, measurement and control, such as used in cleaning liquid, hydraulic oil, heat-carrying agent and lubricant etc. It is temperature switch, transmitter and display in one and the same device. In its standard configuration it has optional two switching outputs (PNP or NPN), an analog output signal (0...20mA| 4…20 mA or 0...5V| 0…10 V) as well as with RS485 Link.



Quick Information:



  • PT100, PT1000 sensor input
  • Supprt MODBUS protocol
  • Voltage output 2×PNP + 0V~5VDC/10VDC + MODBUS; current output 2×PNP + 0mA/4mA~20mADC + MODBUS
  • OLED display
  • Switching points settable
  • Switching can be set normally open / normally closed
  • Analog output span settable
  • Various analog output ways available
  • Supporting Switching delay
  • Electrical connector of M12 5PIN and M12 8PIN
  • Display reversing 180°
  • Displaying temperature peak value and environment temperature
  • Housing with electrical connection against process connection rotatable 330°
  • Password protection function available



Detailed Technical Info:



Measuring range -50~260℃
Accuracy ≤0.5℃
Supply Power 12…30V DC
Temp. Error ±0.02%FS/℃
Long-term Stability ±0.3%FS/Year
Analog output accuracy ±0.2%FS
Measuring Media Water, mineral-based hydraulic fluid and Synthetic oil
Wetted material Stainless steel, Nitrile Butadiene Rubber and PTFE

Output Configurations



switching+voltage+ communication 2×PNP + 0V~5VDC/10VDC + MODBUS
switching+current+ communication 2×PNP + 0mA/4mA~20mADC + MODBUS
Switching current 1.0A(Max.)
Switching type normally open , normally closed (settable)
Switching respond time <10ms
Switching delay 0.00s~1000.0s
Switching motion mode delay or windows mode
Analog signal output and maximum ohmic load RL Current output 0/4…20mA,20…4/0mA RL≤0.5kΩ
Voltage output 0…5/10V,5/10…0V RL>10kΩ
Screen display OLED
Menu language Chinese,English
Switching instruction 2X Red LED
Displaying pressure units kPa, mm, cm, m
Buttons 3X blue back-lighted touch buttons
Displaying supplementary variables environment temp., analog output value, max. Peak value,mini. peak value
Supplementary variables displaying mode fixed displaying or INFO button switching Display
Working temperature -30℃~80℃
Media temperature 0℃~60℃
Storage temperature -40℃~80℃
Electromagnetism compatible GB/T 17626.2/3/4-2006
Shock resistance ≤10g/10Hz...500Hz(IEC 60068-2-6-2007)
Vibration resistance ≤50g/11ms(IEC 60068-2-27-2008)
Protection Rating IP65 / IP68





Competitive Advantages:

1. Founded in 2004, over 13 year professional research, developing and production experience;
2. Experienced and professional R&D team to provide customization services;
3. Producing transmitter core elements- PCB, supplying PCB for transmitter producers;
4. Highest accuracy up to 0.05%FS;
5. Various outputs I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other analog outputs;
6. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
