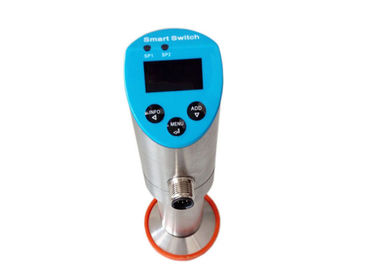

Sanitary Application Smart Electronic Digital Pressure Switch with Triclamp Connection

Sanitary Application Smart Electronic Digital Pressure Switch with Triclamp Connection
Sanitary Application Smart Electronic Digital Pressure Switch with Triclamp Connection

Large Image :  Sanitary Application Smart Electronic Digital Pressure Switch with Triclamp Connection

Product Details:
Place of Origin: Anhui, China
Brand Name: WNK
Certification: ISO9001
Model Number: SPS
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: Packaging details: Sea-Worthy Packing or Air-Worthy Packing
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500pcs per month
Detailed Product Description
Output: 4...20mA Or 0...5V+PNP+MODBUS Measuring Range: -0.1...0.1MPa To 60MPa
Accuracy: ≤0.5%FS Long-term Stability: ±0.3%FS/year
Power Supply: 12...30V DC Display: OLED
Housing Material: SS304 Ingress Protection Level: IP65
OEM Service: OEM, ODM Process Connection: Thread, Clamp
High Light:

pressure control switch

,

stainless steel pressure switch

 Sanitary Application Smart Electronic Digital Pressure Switch with Triclamp Connection 0
Sanitary Application Smart Electronic Digital Pressure Switch with Triclamp Connection

SPS pressure switch offers pressure monitoring and control in liquid and gaseous media. The SPS is applied in general industrial applications such as in mechanical manufacturing, in machine tool systems, in hydraulic and pneumatic systems, for pressure monitoring and control and for pumps and compressors. It is pressure switch, transmitter and display in one device. In its standard configuration it has optional two switching outputs (PNP or NPN), an analog output signal (0...20mA| 4…20 mA or 0...5V| 0…10 V) as well as with RS485 Link.

Whole stainless steel housing and the core high accuracy diffused silicon pressure sensor ensure good accuracy measurement of excellent long-term stability. WNK SPS has various functions including current or voltage + PNP +MODBUS outputs, NO &NC function, switch delay, OLED display, display turnable 180° and so on, providing easy installation and pressure control.

Features:

  • PNP switching, voltage and current outputs
  • Switching points settable
  • Switching can be set normally open / normally closed
  • Analog output span settable
  • Offering Switching delay function
  • Support MODBUS
  • Displaying pressure peak value and environment temperature
  • Various analog output ways available
  • OLED display
  • Display turnable 180°
  • Housing with electrical connection against process connection rotatable 330°


Detailed Technical Info:


Product nameElectronic Smart Pressure Switch
Measuring range-0.1 to 0.1MPa .... 60MPa
Measuring mediaGas & Fluid
Accuracy≤0.5%FS
Supply power1230V DC
Temp. error±0.02%FS/ºC(Zero/ Full Span)
Long-term stability±0.3%FS/Year
Analog output accuracy≤±0.2%FS
Output configurations2×PNP + 0V~5VDC/10VDC + MODBUS
2×PNP + 0mA/4mA~20mADC + MODBUS
Switch current1.0A(Max.)
Switching typeNormally open / closed (settable)
Switching reponce time<10ms
Swith delay0.00s~1000.0s
Switching motion modeDelay or windows mode
Analog signal output and max ohmic load RLCurrent output 0/4...20mA, 20...4mA RL≤0.5k
Voltage output 0...5/10v, 5/10...0v RL>10k
Screen displayOLED
Menu languageChinese and English
Switch indicating2 Red LED
Displaying unitspsi,bar,mbar,Pa,kPa,MPa
Buttons3 blue back-lighted touch buttons
Supplementary variables displayingEnvironment temperature, analog output value, max peak value,mini peak value
Supplementary variables displaying wayFixed displaying or switch display by INFO button
Working temperature-30-80ºC
Media temperature-30-80ºC
Storage temperature-40ºC~80ºC
Electromagnetism compatibleGB/T 17626.2/3/4-2006
Shock resistance≤10g/10Hz...500Hz(IEC 60068-2-6-2007)
Vibration resistance≤50g/11ms(IEC 60068-2-27-2008)
Protection classIP65



Ordering sheet
Sanitary Application Smart Electronic Digital Pressure Switch with Triclamp Connection 1
