Intelligent OLED Electronic Digital Pressure Switch 12-30v 24v NPN PNP

China Hefei WNK Smart Technology Co.,Ltd certification
China Hefei WNK Smart Technology Co.,Ltd certification
I'm Online Chat Now

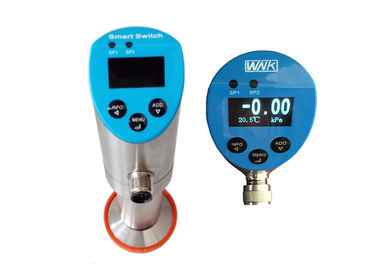

Intelligent OLED Electronic Digital Pressure Switch 12-30v 24v NPN PNP

Intelligent OLED Electronic Digital Pressure Switch 12-30v 24v NPN PNP
Intelligent OLED Electronic Digital Pressure Switch 12-30v 24v NPN PNP

Large Image :  Intelligent OLED Electronic Digital Pressure Switch 12-30v 24v NPN PNP

Product Details:
Place of Origin: Anhui, China
Brand Name: WNK
Certification: ISO9001:2015
Model Number: WNK-SLS
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Standard export carton packing, customized packing
Delivery Time: 5-7 working days
Payment Terms: T/T, Western Union
Supply Ability: 5000 pcs per month
Detailed Product Description
Pressure Type: Gauge Accuracy: ≤0.5%FS
Measuring Range: 0-40Mpa Power Supply: 24V DC
Display: OLED Swithing: PNP, NPN
Stability: ±0.2% URL/ 5 Years
High Light:

pressure control switch

,

liquid level control switch

12-30v, 24v NPN PNP Intelligent OLED Electronic Digital Pressure Switch



Description



SPS is a pressure transmitter with a pressure switch to safely and absolutely measure and monitor gauge pressures. It is highly stable and has a function check and onsite information due to its OLED and digital display. It can be rotated up to 350° if placed on the upper part of the house, also the display contents can be rotated up and down.



Features:



1.  highlighted OLED display, three kinds of displays modes flexible configuration

2. 350°rotatable display module

3. 180°rotatable display content

4. Variety of output signal with 4-20mA, 0.5~4.5V, RS485 Modbus-RTU, PNP or NPN

5. Storage and viewing functions of peak pressure data

6. Shortcut operations to realize PV=0 and factory restore functions

7. Independent air cavity design for moisture proof

8. Protection class IP67







Specifications



Pressure types  Gauge pressure
Measuring range  0-40Mpa
Output signal  4-20mA, 0.5-4.5VDC, Modbus-RTU/RS 485,PNP or NPN output, customer
Reference accuracy ±0.1%URL
Field of application Pressure, level measurement
Stability ±0.2% URL/ 5 years
Diaphragm material SUS316L, Hastelloy C
process connection Standard G1/4, G1/2, M20*1.5, optional
Electrical connection Aviation plug, M12*1 (5 pins)
Sensor seal Stainless steel welding seal
Approvals CE, Ex-proof
Working temperature -40-85℃
Storage temperature -40-85℃
Media temperature Sensor with silicon oil filling -40-120℃
Working humidity 0-95%RH@40℃
Protection class IP67







Intelligent OLED Electronic Digital Pressure Switch 12-30v 24v NPN PNP 0



Intelligent OLED Electronic Digital Pressure Switch 12-30v 24v NPN PNP 1Intelligent OLED Electronic Digital Pressure Switch 12-30v 24v NPN PNP 2
