4-20ma Hart Industrial Temperature Transmitter One Side Connected

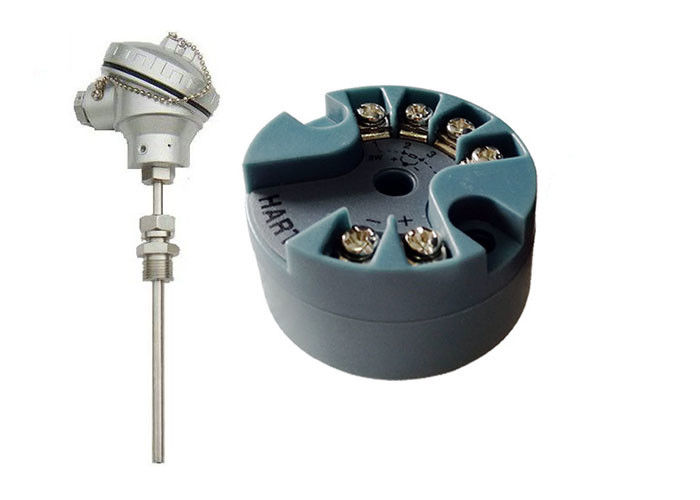

Large Image : 4-20ma Hart Industrial Temperature Transmitter One Side Connected

Product Details:

Place of Origin:	Anhui, China
Brand Name:	WNK
Certification:	ISO
Model Number:	WNK-621

Payment & Shipping Terms:

Minimum Order Quantity:	5 pcs
Price:	Negotiable
Packaging Details:	Standard expoort carton packing
Payment Terms:	T/T, Western Union, MoneyGram

Contact Now

Detailed Product Description

Temperature:	50-500C	Temperture Accuracy:	0.1C
Output Signal:	4-20mA 2-wire	Input Type:	Pt100 Pt1000 RTD
Power Supply:	24V DC	Display:	No
Highlight:	high accuracy temperature transmitter , field mounted temperature transmitter

Industrial 4-20ma Hart Head Mounted Temperature Transmitter

Description

WNK temperature transmitter is installed into the top of the temperature transmitter. One side connected to the temperature probe and the other side connected to the circuitry. Compact and inexpensive one is available any time.

It specially designs for PT100. It inputs various RTD signal and converts this signal into 4-20mA standard current signal after linear processing. It has configurable measuring ranges and large ambient temperature range.

Benefits

Measures temperature with a linear output signal
High accuracy across entire ambient temperature range
Reduces plant noise
Slim design, ideal for upgrade of installed PT100 probes with a 4-..20mA signal
Rugged design, fully potted electronic

Main Sensors Accuracy Parameters

Sensors type	Sensor range	Minimum range	Digit accuracy	D/A accuracy
2,3,4- wire thermal resistor
Cu50	-50~150 ºC	10 ºC	±0.15 ºC	0.01%
Cu100	-50~150 ºC	10 ºC	±0.15 ºC	0.01%
PT100	-200~850 ºC	10 ºC	±0.15 ºC	0.01%
PT1000	-200~850 ºC	10ºC	±0.1 ºC	0.01%
2,3,4- wire resistor
400Ω	0~400Ω	10Ω	0.01Ω	0.01%
4000Ω	-0~4000Ω	10Ω	0.01Ω	0.01%
Voltage
100mV	-10~100 mV	10 mV	0.01 mV	0.01%
1000mV	-100~1000mV	10 mV	0.01 mV	0.01%
Thermocouple
B type	150~1820ºC	25ºC	±1.0 ºC	0.01%
E type	-200~1000ºC	25ºC	±0.4 ºC	0.01%
J type	- 210~1200ºC	25ºC	±0.4ºC	0.01%
K type	-200~1372ºC	25ºC	±0.4ºC	0.01%
N type	-200~1300ºC	25ºC	±0.4ºC	0.01%
R type	0~1768ºC	25ºC	±0.8ºC	0.01%
S type	0~1768ºC	25ºC	±0.8ºC	0.01%
T type	-200~400ºC	25ºC	±0.4 ºC	0.01%
