| Pressure Range: | -0.1-0.1Mpa-60Mpa | Medium: | Liquid, Gas, Water |
|---|---|---|---|
| Signal Output: | 4-20ma, 0.5-4.5V, PNP, NPN | Housing: | 304SS, 316SS |
| Working Temperature: | -30~80C | Ingress Protection: | IP65, IP67 |
| Switching Type: | NO/NC | Accuracy: | ≦ 0.5% FS |
| Display: | OLED | ||
| High Light: | OLED Display Hydraulic Pressure Switch,IP67 Hydraulic Pressure Switch,60Mpa Hydraulic Pressure Switch |
||
Description
SPS is a pressure transmitter with a pressure switch to safely and absolutely measure and monitor gauge pressures. It is highly stable and has a function check and onsite information due to its OLED and digital display. It can be rotated up to 350° if placed on the upper part of the house, also the display contents can be rotated up and down.
Applications
Gas-liquid dual-capable can be used in : pump control, storage tank monitor, liquid level control, filter blocking and monitor, leakage surveillance.
Industrial process testing and control
Self-controlled and constant-pressured water supply in building
Petrochemical, environmental protection, water conservancy, light industry, machinery, metallurgy
Measuring and control in other systems
Specs Sheet
Product Parameters
| Applicable Media | Liquid Gas and water |
| Pressure Measurement | Gauge pressure, Absolute Pressure |
| Pressure Range | -100kpa-60Mpa |
| Accuracy | 0.5%FS |
| Stability | ±0.3% FS/year |
| Switch Current | 1.0A(Max.) |
| Display | OLED (Optional) |
| Housing Material | 304 stainless steel |
| Storage Temperature | -40~80ºC |
| Working Temperature | -40~80ºC |

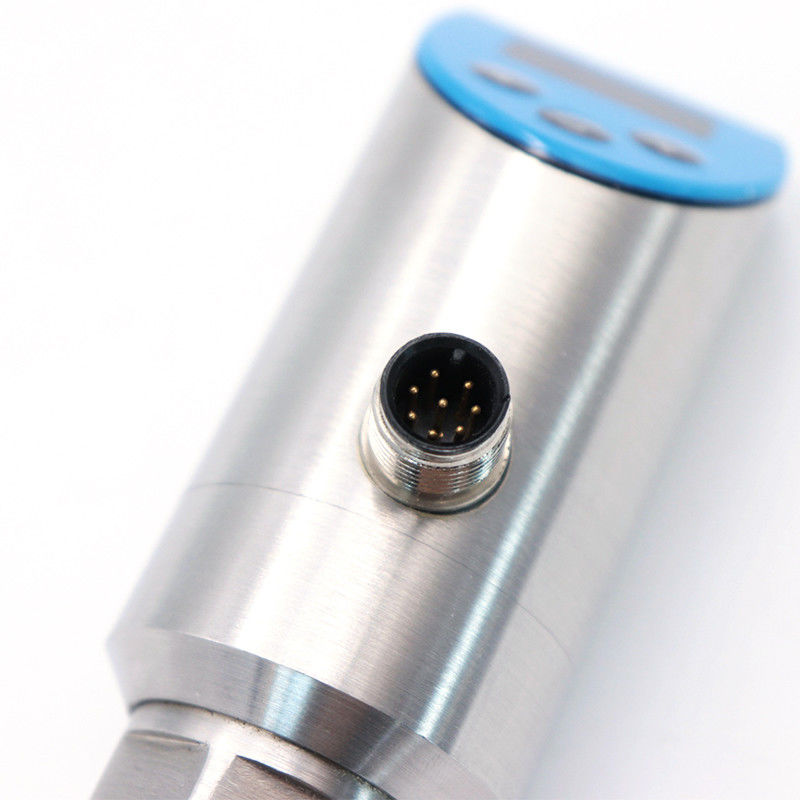

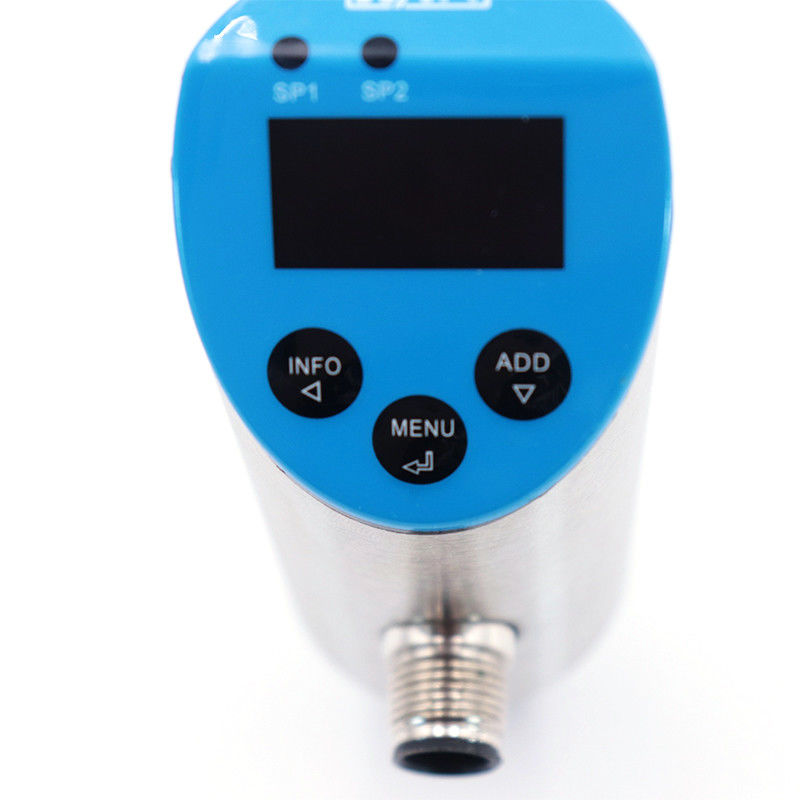

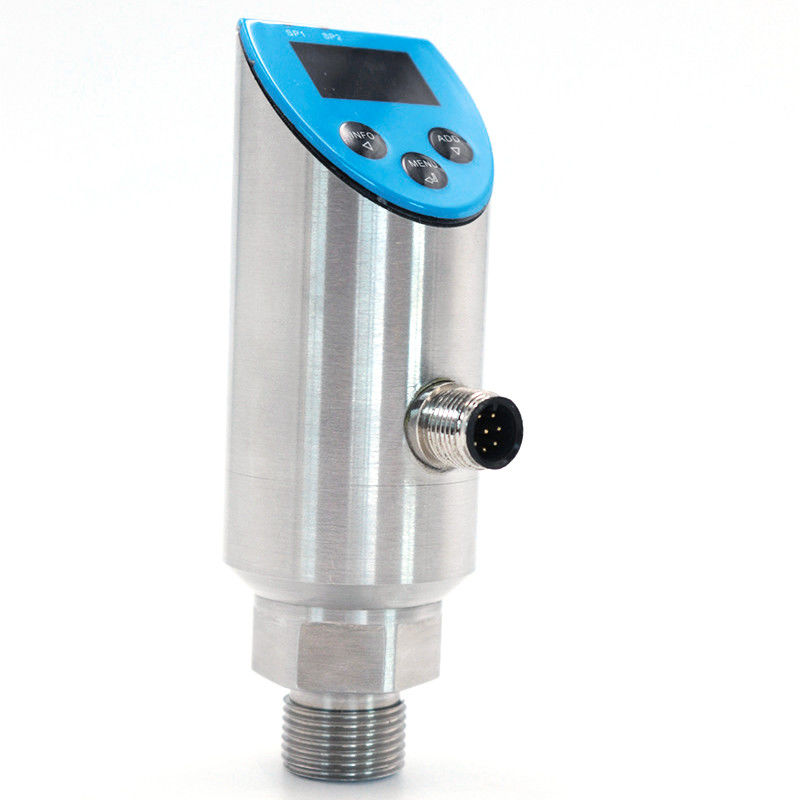

Product Show
Company Information
FAQ
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
A: 12 month from shipment date, for non-man-made damages.
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea.
