Ceramic Capacitive 15MPa IP65 I2C Water Pressure Sensor

China Hefei WNK Smart Technology Co.,Ltd certification
China Hefei WNK Smart Technology Co.,Ltd certification
I'm Online Chat Now

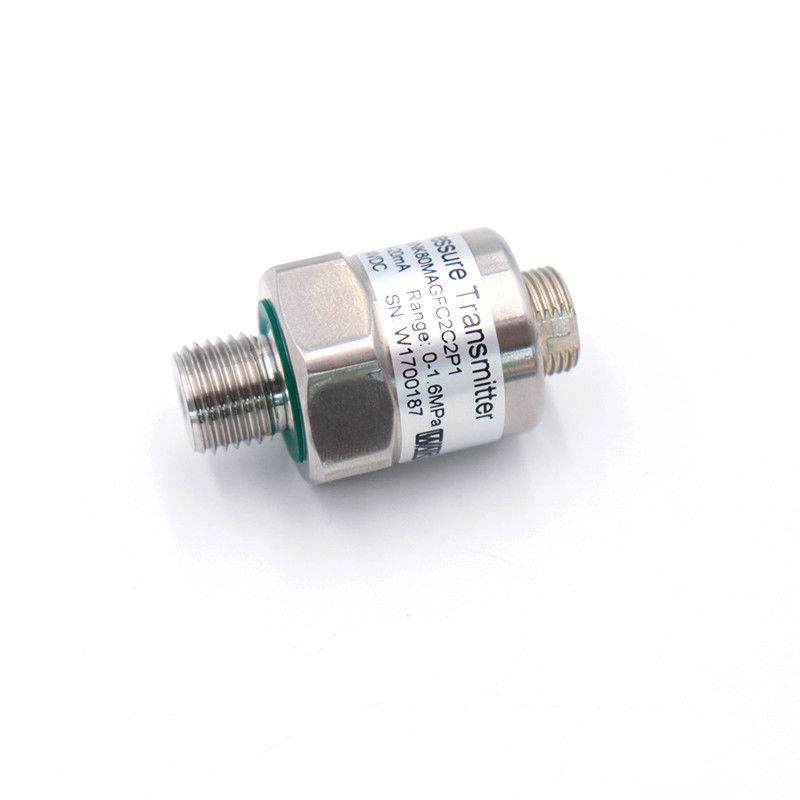

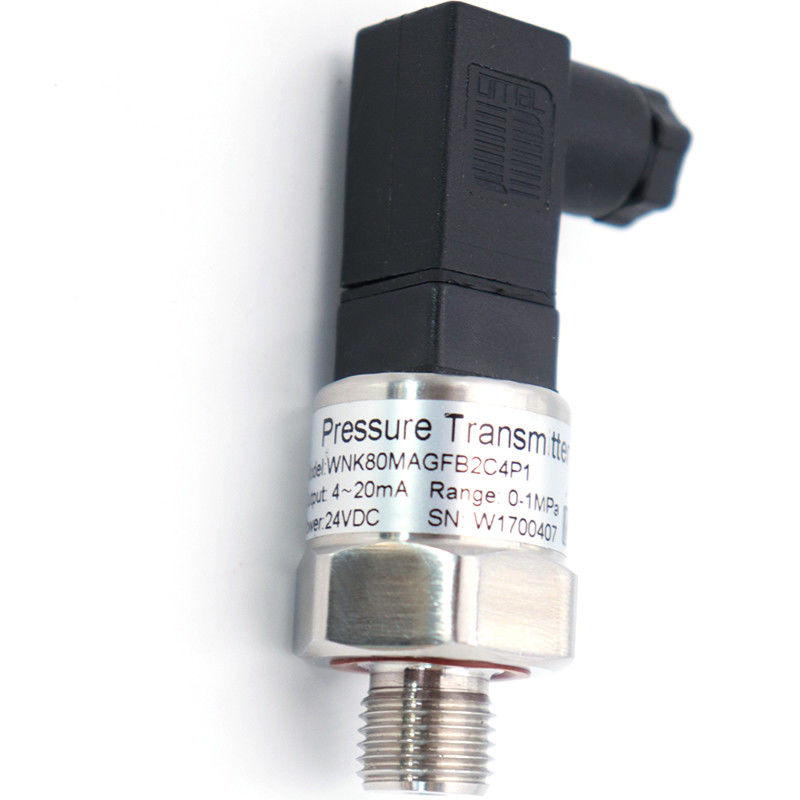

Ceramic Capacitive 15MPa IP65 I2C Water Pressure Sensor

Ceramic Capacitive 15MPa IP65 I2C Water Pressure Sensor
Ceramic Capacitive 15MPa IP65 I2C Water Pressure Sensor Ceramic Capacitive 15MPa IP65 I2C Water Pressure Sensor Ceramic Capacitive 15MPa IP65 I2C Water Pressure Sensor

Large Image :  Ceramic Capacitive 15MPa IP65 I2C Water Pressure Sensor

Product Details:
Place of Origin: China
Brand Name: WNK
Certification: CE&UL
Model Number: WNK80MA
Payment & Shipping Terms:
Minimum Order Quantity: 1 Ppiece
Price: Negotiation
Packaging Details: Standard Packing or as per your requirement
Delivery Time: 3-5 days
Payment Terms: T/T, Paypal, West union
Supply Ability: 5000PCS per month
Detailed Product Description
Power Supply: 24VDC/12VDC/5VDC/3.3V Pressure Range: 0~15MPa
Measured Media: Liquid, Gas And Steam Electrical Connection: Packard, M12, DIN43650, Cable
Housing Material: Alunimum/Brass/SST 304 Key Words: Pressure Sensor
IP Rate: IP65 Prorocess Conection: G1/2, G1/4, M2x1.5NPT1/4, Customization
Output: 4-20mA/0-5v/0.5-4.5v/I2C
High Light:

I2C Water Pressure Sensor

,

15MPa Water Pressure Sensor

,

Ceramic Capacitive Pressure Sensor

IP65 4-20MA Low Cost Pressure Sensor For Water I2C Pressure Sensor



Product Description



WNK80MA is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance.



With high output and wide range, WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.





Applicable media Liquid, gas and steam
Pressure range00 0-15Mpa
Cell Ceramic capacitive pressure sensor
Pressure measurment Gauge Pressure and sealing pressure
Output 4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C
Power supply 24VDC/12VDC/5VDC/3.3V
Accuracy(linearity,Hysteresis and Repeatability) 0.5%FS-1%FS
Compensation temperature -20~85ºC
Ambient temperature -40~125ºC
Working temperature -40~125ºC
Temperature drift(zero) ±0.15% F.S. (-20~85ºC)
Temperature drift(full range) ±0.15% F.S. (-20~85ºC)
Electrical connection Parkard, Cable outlet, M12, mini DIN43650
Mechanical connection G1/4, 1/4NPT,1/8NPT, M12*1.5, 7/16-20UNF (female), customazation
Housing material 304 stainless steel(316SS for inner core)
Protection IP65




Product Display









Ceramic Capacitive 15MPa IP65 I2C Water Pressure Sensor 0







Company Information



Ceramic Capacitive 15MPa IP65 I2C Water Pressure Sensor 1Ceramic Capacitive 15MPa IP65 I2C Water Pressure Sensor 2Ceramic Capacitive 15MPa IP65 I2C Water Pressure Sensor 3Ceramic Capacitive 15MPa IP65 I2C Water Pressure Sensor 4Ceramic Capacitive 15MPa IP65 I2C Water Pressure Sensor 5Ceramic Capacitive 15MPa IP65 I2C Water Pressure Sensor 6



FAQ



Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea.
