Name: WNK 0.5-4.5V 4-20ma Smart Absolute Gauge Pressure Sensor For Water Air Oil
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK80MA
Price: 21.00 USD
Availability: InStock

Home > Products > Compact Pressure Sensor >

WNK 0.5-4.5V 4-20ma Smart Absolute Gauge Pressure Sensor For Water Air Oil

WNK 4 - 20ma Pressure Sensor

15MPa Compact Pressure Sensor

WNK 0.5-4.5V Pressure Sensor

Place of Origin:

China

Brand Name:

WNK

Certification:

CE&UL

Model Number:

WNK80MA

Request A Quote

WNK 0.5-4.5V 4-20ma Smart Absolute Gauge Pressure Sensor For Water Air Oil

Product Details

Output:

24VDC/12VDC/5VDC/3.3V

Pressure Range:

0~15MPa

Measured Media:

Liquid, Gas And Steam

Electrical Connection:

Packard, M12, DIN43650, Cable

Housing Material:

Alunimum/Brass/SST 304

Key Words:

Pressure Sensor

IP Rate:

IP65

Prorocess Conection:

G1/2, G1/4, M2x1.5NPT1/4, Customization

Highlight:

WNK 4 - 20ma Pressure Sensor

15MPa Compact Pressure Sensor

WNK 0.5-4.5V Pressure Sensor

Payment & Shipping Terms

Minimum Order Quantity

1 Ppiece

Packaging Details

Standard Packing or as per your requirement

Delivery Time

3-5 days

Payment Terms

T/T, Paypal, West union

Supply Ability

1000

Explosion Proof Compact Pressure Sensor With 4~20mA And High Accuracy 0.2%FS

Get Best Price

Ceramic Capacitive 15MPa IP65 I2C Water Pressure Sensor

Get Best Price

WNK 0.5-4.5V 4 - 20ma Pressure Transmitter 150Psi IP65

Get Best Price

WNK 0.5-4.5V 4-20ma Smart Absolute Gauge Pressure Sensor For Water Air Oil

Get Best Price

86-551-65369655

Contact Now

Product Description

WNK 0.5-4.5V 4-20ma Smart Absolute Gauge Pressure Sensor For Water Air Oil

WNK Absolute Gauge Pressure Sensor

Product Description

WNK80MA is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance.

With high output and wide range, WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.

Applicable media	Liquid, gas and steam
Pressure range	0-60bar
Cell	Ceramic capacitive pressure sensor
Pressure measurment	Gauge Pressure, absolute pressure and sealing pressure
Output	4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C
Power supply	24VDC/12VDC/5VDC/3.3V
Accuracy(linearity,Hysteresis and Repeatability)	1%F.S.
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
Electrical connection	Parkard, Cable outlet, M12, mini DIN43650
Mechanical connection	G1/4, 1/4NPT,1/8NPT, M12*1.5, 7/16-20UNF (female), customazation
Housing material	304 stainless steel(316SS for inner core)
Protection	IP65

Application:

WNK80MA is solution for below applications:

Pressure measurement of gas, vapor or liquid in various areas;

Liquid level, volume or mass measurement;

Integrated in a variety of user-defined solutions;

Smart driking water and nature gas controlling system, samrt fire controlling. automotive electronics controlling, air compressor, HVAC, pump, valve and etc;

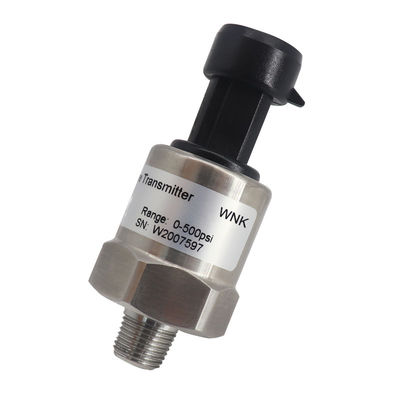

WNK 0.5-4.5V 4-20ma Smart Absolute Gauge Pressure Sensor For Water Air Oil 0

Product Show

WNK 0.5-4.5V 4-20ma Smart Absolute Gauge Pressure Sensor For Water Air Oil 1

WNK 0.5-4.5V 4-20ma Smart Absolute Gauge Pressure Sensor For Water Air Oil 2
