|Pressure Range:||-1bar - 700bar||Medium:||Liquid, Gas, Water|
|Signal Output:||4-20ma, 0.5-4.5V, PNP, NPN||Housing:||304SS, 316SS|
|Working Temperature:||-30~120C||Ingress Protection:||IP65, IP67|
|Switching Type:||NO/NC||Accuracy:||+/- 0.5% FS|

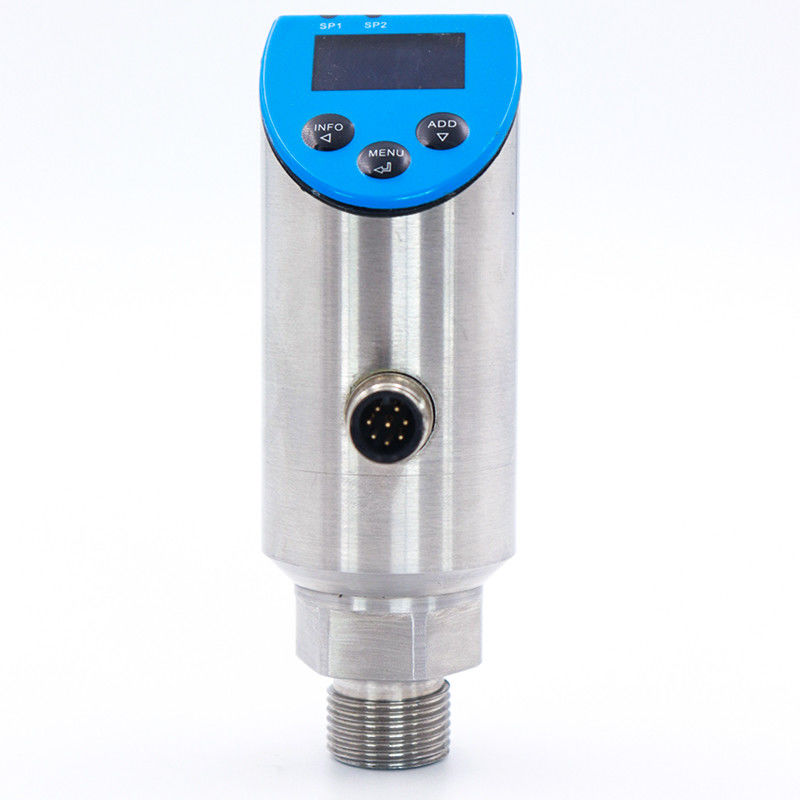

316SS hydraulic digital pressure switch,
316SS electronic pressure switch with display,
OLED electronic pressure switch
SPS pressure switch is designed for pressure monitoring and measurement in liquid and gaseous media. The SPS is suited for general industrial applications such as in mechanical manufacturing, in machine tool systems, in hydraulic and pneumatic systems, for pressure monitoring and control and for pumps and compressors. It is pressure switch, transmitter and display in one device. In its standard configuration it has optional two switching outputs (PNP or NPN), an analog output signal (0...20mA| 4…20 mA or 0...5V| 0…10 V) as well as with RS485 Link.
storage tank monitor,
liquid level control,
filter blocking and monitor,
- Programmable automatic control design
- OLED with back-light display
- Display 180°turnable
- Displaying pressure peak value and environment temperature
- Body 330°rotable
- Industrial touch-sensitive button
- Switch points settable
- PNP/NPN +4~20mA/0-5V output
- Support MODBUS
- Pressure, level and temperature switch
- OEM & Customizable
|Applicable Media||Liquid Gas Water|
|Output||4-20ma, 0.5-4.5V, PNP, NPN|
|Protection class||IP65/ IP67|
|Pressure Range||-1bar - 700bar|
