IP67 PNP Electronic Digital Differential Pressure Switch For Liquid Gas

China Hefei WNK Smart Technology Co.,Ltd certification
China Hefei WNK Smart Technology Co.,Ltd certification
I'm Online Chat Now

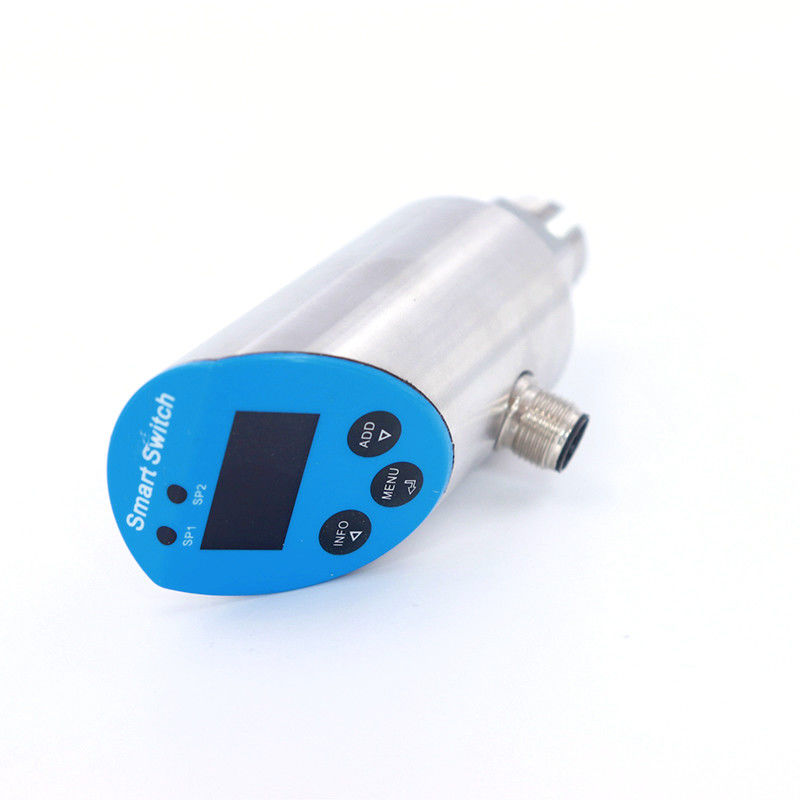

IP67 PNP Electronic Digital Differential Pressure Switch For Liquid Gas

IP67 PNP Electronic Digital Differential Pressure Switch For Liquid Gas
IP67 PNP Electronic Digital Differential Pressure Switch For Liquid Gas IP67 PNP Electronic Digital Differential Pressure Switch For Liquid Gas

Large Image :  IP67 PNP Electronic Digital Differential Pressure Switch For Liquid Gas

Product Details:
Place of Origin: Anhui, China
Brand Name: WNK
Certification: UL
Model Number: WNK-SPS
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Standard export carton packing, customized packing
Delivery Time: 5-7 working days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 5000 pcs per month
Detailed Product Description
Pressure Range: -1bar - 700bar Medium: Liquid, Gas, Water
Signal Output: 4-20ma, 0.5-4.5V, PNP, NPN Housing: 304SS, 316SS
Working Temperature: -30~120C Ingress Protection: IP65, IP67
Switching Type: NO/NC Accuracy: +/- 0.5% FS
High Light:

IP67 Digital differential Pressure Switch

,

PNP Electronic Digital Pressure Switch

,

PNP Digital differential Pressure Switch

0.5% Accuracy IP67 4-20MA PNP Water Oil Gas Pressure Control Switch



Description



SPS designed for pressure monitoring and measurement in liquid and gaseous media. The SPS is suited for general industrial applications such as in mechanical manufacturing, in machine tool systems, in hydraulic and pneumatic systems, for pressure monitoring and control and for pumps and compressors. It is pressure switch, transmitter and display in one device. In its standard configuration it has optional two switching outputs (PNP or NPN), an analog output signal (0...20mA| 4…20 mA or 0...5V| 0…10 V) as well as with RS485 Link.

Product Features - SPS Intelligent Electronic Pressure Switch with OLED Display

1. Smart type, with PNP/NPN switching.
2. Swithing points settable, NO/NC availalbe
3. With OLED display, with 5 digit available.
4. Provide RS485 communication for option
.



Product Spec



Applicable Media Liquid Gas Water
Output  4-20ma, 0.5-4.5V, PNP, NPN
Housing Material 304SST, 316SST
Accuracy +/- 0.5% FS
Ingress Protection IP65, IP67
Working temperature -30~120C
switching type NO/NC
Display OLED





Product Show

IP67 PNP Electronic Digital Differential Pressure Switch For Liquid Gas 0IP67 PNP Electronic Digital Differential Pressure Switch For Liquid Gas 1
