600bar RS485 4-20MA Electronic Digital Pressure Switch Gas Liquid Dual Capable

China Hefei WNK Smart Technology Co.,Ltd certification
China Hefei WNK Smart Technology Co.,Ltd certification
I'm Online Chat Now

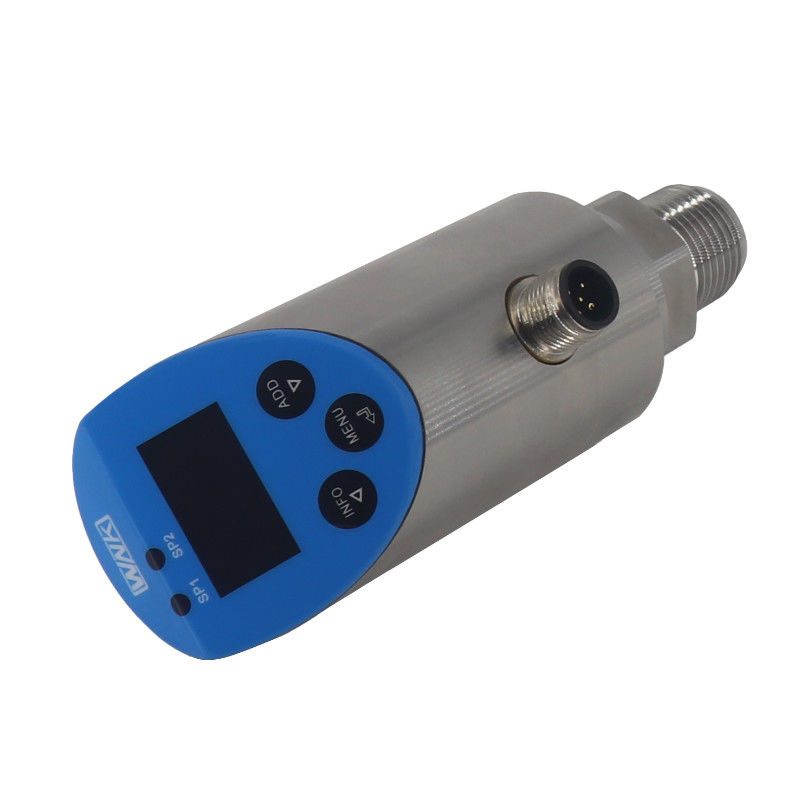

600bar RS485 4-20MA Electronic Digital Pressure Switch Gas Liquid Dual Capable

600bar RS485 4-20MA Electronic Digital Pressure Switch Gas Liquid Dual Capable
600bar RS485 4-20MA Electronic Digital Pressure Switch Gas Liquid Dual Capable 600bar RS485 4-20MA Electronic Digital Pressure Switch Gas Liquid Dual Capable

Large Image :  600bar RS485 4-20MA Electronic Digital Pressure Switch Gas Liquid Dual Capable

Product Details:
Place of Origin: Anhui, China
Brand Name: WNK
Certification: ISO9001:2015
Model Number: WNK-SPS
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Standard export carton packing, customized packing
Delivery Time: 5-7 working days
Payment Terms: T/T, Western Union
Supply Ability: 5000 pcs per month
Detailed Product Description
Pressure Range: -100-60Mpa Accuracy: ≤0.5%FS
Measure Medium: Gas, Liquid, Water Output: PNP, NPN, 4-20ma
Display: OLED IP Protection: IP65
Switching Type: NO/NC Housing: 304, 316SS
High Light:

20MA electronic digital pressure switch

,

RS485 electronic digital pressure switch

,

600bar digital pump pressure switch

600bar RS485 4-20MA Automatic Digital Pressure Control Switch For Liquid Water



Description



WNK-SPS OLED display pressure control switch Can provide a continuous pressure monitoring and set the pressure switching point without supercharging. User can easily set the switching point and back-to-switching point without supercharging equipment. And can define the switch type(normal open/close), damping time,the relay and NPN / PNP switch.  The product can transfer the collected pressure signal into standard current and pressure signal output. The display and connection can rotate freely within 180 degrees so that it can be easily installed.




Applications


Gas-liquid dual-capable can be used in : pump control, storage tank monitor, liquid level control, filter blocking and monitor, leakage surveillance.
Industrial process testing and control
Self-controlled and constant-pressured water supply in building
Petrochemical, environmental protection, water conservancy, light industry, machinery, metallurgy
Measuring and control in other systems




Datasheet



Applicable media
Liquid, Gas, Steam
Pressure range
-100kPa~60MPa
Output Signal
2×PNP + 0V~5VDC/10VDC + MODBUS(RS485)
2×PNP + 0mA/4mA~20mADC + MODBUS(RS485)
Accuracy
0.5% FS
Stability
±0.3% FS/year
Switch current
1.0A(Max.)
Switching type
Normally open / closed (settable)
Display
OLED (Optional)
Housing material
304 stainless steel
Mechanical connection
M20×1.5; 1/2-18NPT, 1/4NPT, Customize
Storge temperature
-40~80℃
Process temperature
-30~80℃
Protection class
IP65





600bar RS485 4-20MA Electronic Digital Pressure Switch Gas Liquid Dual Capable 0600bar RS485 4-20MA Electronic Digital Pressure Switch Gas Liquid Dual Capable 1



Company

600bar RS485 4-20MA Electronic Digital Pressure Switch Gas Liquid Dual Capable 2600bar RS485 4-20MA Electronic Digital Pressure Switch Gas Liquid Dual Capable 3600bar RS485 4-20MA Electronic Digital Pressure Switch Gas Liquid Dual Capable 4

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea.
