Pt1000 Head Mounted Temperature Transmitter Thermocouple K 4-20ma Output

China Pt1000 Head Mounted Temperature Transmitter Thermocouple K 4-20ma Output supplier
Pt1000 Head Mounted Temperature Transmitter Thermocouple K 4-20ma Output supplier Pt1000 Head Mounted Temperature Transmitter Thermocouple K 4-20ma Output supplier

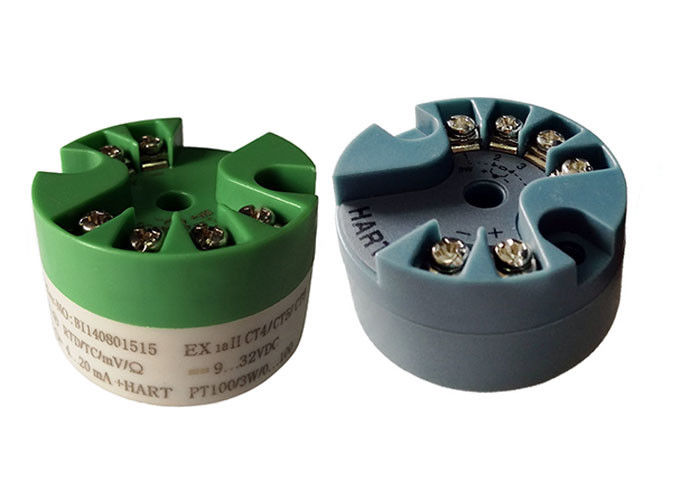

Large Image :  Pt1000 Head Mounted Temperature Transmitter Thermocouple K 4-20ma Output

Product Details:

Place of Origin: Anhui, China
Brand Name: WNK
Certification: ISO
Model Number: WNK-621

Payment & Shipping Terms:

Minimum Order Quantity: 5 pcs
Price: Negotiable
Packaging Details: Standard expoort carton packing
Payment Terms: T/T, Western Union, MoneyGram
Contact Now
Detailed Product Description
Usage: Industrial Temperature Range: -200℃~+600℃
Output Signal: 4-20mA Two Wires Designs:: Pt100 Pt1000
Power: 24V DC Typical Accuracy: 0.5%FS, 0.25%

Thermocouple K 4-20ma Output Pt100 Head Mounted Temperature Transmitter





Description

Analog temperature transmitter specially designs for PT100. It inputs various RTD signal and converts this signal into 4-20mA standard current signal after linear processing. It has configurable measuring ranges and large ambient temperature range.



It is installed into the top of the temperature transmitter. One side connected to the temperature probe and the other side connected to the circuitry. Compact and inexpensive one is available any time.




Features

  • Two-wire work mode
  • Pt100,Cu50,Cu100, Pt1000 Four thermal resistance full measurement range
  • K, S, R, B, N, E, J, T Eight thermocouples full range measurement
  • Cold end automatic compensation
  • Thermal resistance three-wire measurement automatically eliminating the lead resistance
  • Thermal resistance/ Thermocouple disconnection fault prompts and output processing;
  • Independent setting for temperature transmission output range
  • High accuracy, low temperature drift



Datasheet



Signal Type Measurements Range Minimum
Range
Output Accuracy


Thermocouples
(TC)
T -200~400ºC 25ºC ±0.4ºC/0.2%
E -200~1000ºC 25ºC ±0.4ºC/0.2%
J - 210~1200ºC 25ºC ±0.4ºC/0.2%
K -200~1372ºC 25ºC ±0.4ºC/0.2%
N -200~1300ºC 25ºC ±0.4ºC/0.2%
R 0~1768ºC 100ºC ±0.8ºC/0.2%
S 0~1768ºC 100ºC ±0.8ºC/0.2%
B 150~1820ºC 100ºC ±1.0ºC/0.2%

mV input
-120~120mV 10mV ±10μV /0.2%
-1000~1000mV 50mV ±100μV /0.2%

Resistance
Temperature
(RTD)
Pt50 -200~850ºC 10ºC ±0.15ºC/0.2%
Pt100 -200~850ºC 10ºC ±0.15ºC/0.2%
Pt500 -200~850ºC 10ºC ±0.1ºC/0.2%
Pt1000 -200~850ºC 10ºC ±0.1ºC/0.2%
Ohm input 0~500 Ω 100Ω ±0.2 Ω/0.2%
0~4500 Ω 100Ω ±1.0 Ω/0.2%
