Product Details:
Payment & Shipping Terms:
|
| Pressure Range: | 0-600bar | Output: | I2C, SPI, 0.5-4.5V, 4-20ma And Customization |
|---|---|---|---|
| Respond Time: | ≥1ms | Overload Pressure: | 3-5 Times |
| Sensor Type: | Iot Pressure Sensor | Working Temperature: | -40 -135°C |
| Warranty: | 12 Months | Ingress Protection: | IP67 |
| Accuracy: | 1% | Compensation Temperature: | -20 -70°C |
| Housing Material: | Stainless Steel 304 | ||
| High Light: | IOT Air Compressor Pressure Sensor,600bar Air Compressor Pressure Sensor,600bar pressure transmitters for air compressors |
||
Spec
| Applicable media | Liquid, gas and steam |
| Pressure range | 0-20kPa~50MPa |
| Cell | Ceramic capacitive pressure sensor |
| Pressure measurment | Gauge Pressure, absolute pressure and sealing pressure |
| Output | 4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C |
| Power supply | 24VDC/12VDC/5VDC/3.3V |
| Accuracy(linearity,Hysteresis and Repeatability) | 1%F.S. |
| Compensation temperature | -20~85ºC |
| Ambient temperature | -40~125ºC |
| Working temperature | -40~125ºC |
| Temperature drift(zero) | ±0.15% F.S. (-20~85ºC) |
| Temperature drift(full range) | ±0.15% F.S. (-20~85ºC) |

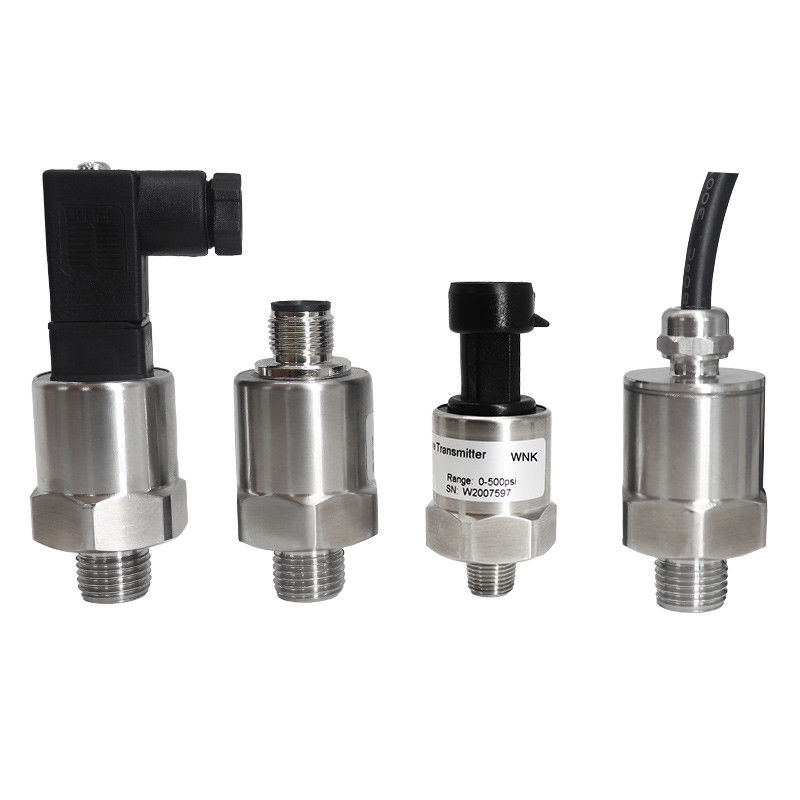

| Electrical connection | Parkard, Cable outlet, M12, mini DIN43650 |
| Mechanical connection | G1/4, 1/4NPT,1/8NPT, M12*1.5, 7/16-20UNF (female), customazation |
| Housing material | 304 stainless steel(316SS for inner core) |
| Protection | IP65 |
Electrical connection:
Application:
WNK80MA is solution for below applications:
Pressure measurement of gas, vapor or liquid in various areas;
Liquid level, volume or mass measurement;
Integrated in a variety of user-defined solutions;
Smart driking water and nature gas controlling system, samrt fire controlling. automotive electronics controlling, air compressor, HVAC, pump, valve and etc;
Company
Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer with more than 13 years of experience. Our factory address is: 4/F,Bldg #6, No.168, Xiangzhang Road, High-tech District, 230088, Hefei, Anhui province, China.
Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome
Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.
Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
