Smart PT100 Temperature Switch with 4~20mA+2 PNP Output

China Hefei WNK Smart Technology Co.,Ltd certification
China Hefei WNK Smart Technology Co.,Ltd certification
I'm Online Chat Now

Smart PT100 Temperature Switch with 4~20mA+2 PNP Output

Smart PT100 Temperature Switch with 4~20mA+2 PNP Output
Smart PT100 Temperature Switch with 4~20mA+2 PNP Output Smart PT100 Temperature Switch with 4~20mA+2 PNP Output Smart PT100 Temperature Switch with 4~20mA+2 PNP Output Smart PT100 Temperature Switch with 4~20mA+2 PNP Output

Large Image :  Smart PT100 Temperature Switch with 4~20mA+2 PNP Output

Product Details:
Place of Origin: Hefei, CN
Brand Name: WNK
Certification: SGS, ISO9001:2015
Model Number: STS
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Sea-Worthy Packing or Air-Worthy Packing
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 5000pcs per month
Detailed Product Description
Output: 4...20mA/0...5V+PNP+MODBUS Accuracy: ≤±0.5℃
Measuring Rang: -50...260℃ Long-term Stability: ±0.3%FS/year
Power Supply: 12...30V DC Display: OLED
Electrical Connector: M12 Ingress Protection: IP65
OEM Service: OEM, ODM Easy Installation: Housing Against Process Connection Rotatable 330°
Application: Oil&gas, Petrol, Petrochemical, Chemical Industry, Metallurgy, Pharmacy
High Light:

2 wire temperature transmitter


pump control switch

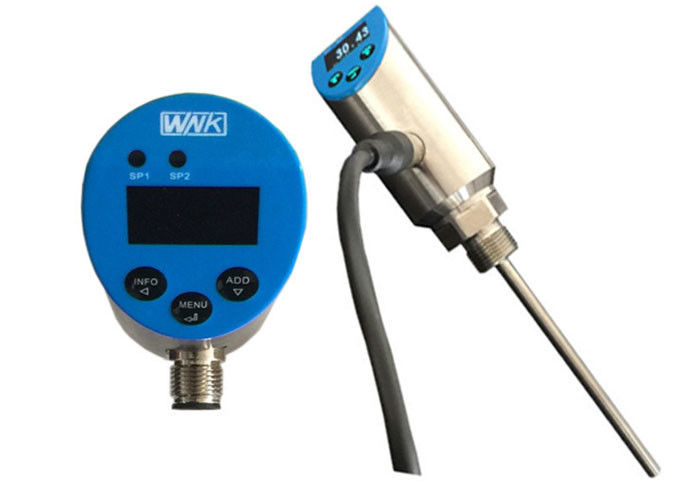

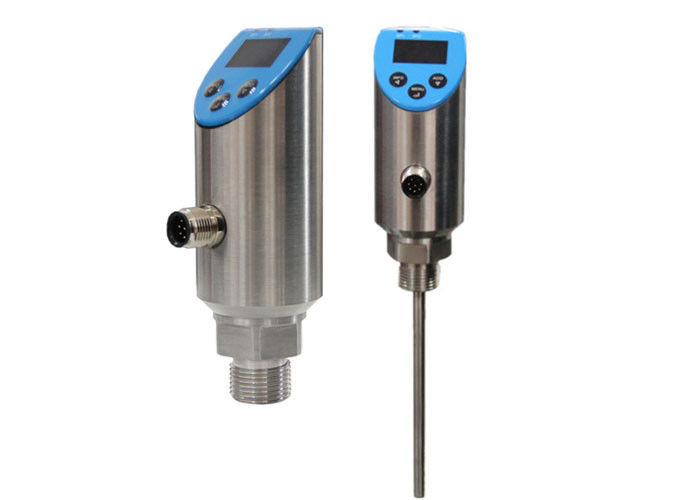

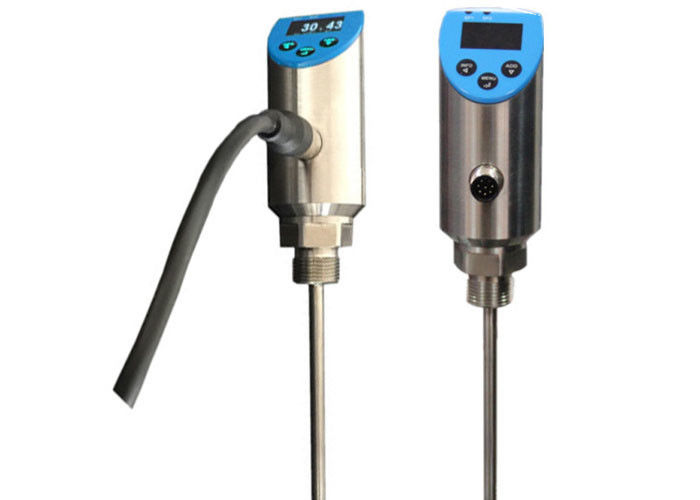

Smart PT100 Temperature Switch with 4~20mA+2 PNP Output


The temperature switch STS is robustly designed and very easy to use. The STS is suited for temperature monitoring, measurement and control, such as used in cleaning liquid, hydraulic oil, heat-carrying agent and lubricant etc. It is temperature switch, transmitter and display in one and the same device. In its standard configuration it has optional two switching outputs (PNP or NPN), an analog output signal (0...20mA| 4…20 mA or 0...5V| 0…10 V) as well as with RS485 Link.


The temperature switch STS takes the high integrated ARM industrial-grade MCU as the core. The STS ensures fast-speed and precise temperature measurement and switch movement by carefully adjustment and combining high-precision AD switch and high stabile pressure sensor. The setup using the three big back-lighted buttons and the display on machine make it very easy for on-site parameters setting.



Quick Information:

  • Temperature measurement in various occasions
  • Support MODBUS
  • PNP switching, voltage and current outputs
  • Switching points settable
  • Switching can be set normally open / normally closed
  • Supporting Switching delay
  • Various analog output ways available
  • Displaying temperature peak value and environment temperature
  • Analog output span settable
  • OLED self-luminous display
  • Display reversing 180°
  • Housing with electrical connection against process connection rotatable 330°
  • Parameters setting for Password protection


Detailed Technical Info:


Measuring range -50~260℃
Accuracy ≤0.5℃
Supply Power 12…30V DC
Temp. Error ±0.02%FS/℃
Long-term Stability ±0.3%FS/Year
Analog output accuracy ±0.2%FS
Measuring Media Water, mineral-based hydraulic fluid and Synthetic oil
Wetted material Stainless steel, Nitrile Butadiene Rubber and PTFE

Output Configurations


switching+voltage+ communication 2×PNP + 0V~5VDC/10VDC + MODBUS
switching+current+ communication 2×PNP + 0mA/4mA~20mADC + MODBUS
Switching current 1.0A(Max.)
Switching type normally open , normally closed (settable)
Switching respond time <10ms
Switching delay 0.00s~1000.0s
Switching motion mode delay or windows mode
Analog signal output and maximum ohmic load RL Current output 0/4…20mA,20…4/0mA RL≤0.5kΩ
Voltage output 0…5/10V,5/10…0V RL>10kΩ
Screen display OLED
Menu language Chinese,English
Switching instruction 2X Red LED
Displaying pressure units kPa, mm, cm, m
Buttons 3X blue back-lighted touch buttons
Displaying supplementary variables environment temp., analog output value, max. Peak value,mini. peak value
Supplementary variables displaying mode fixed displaying or INFO button switching Display
Working temperature -30℃~80℃
Media temperature 0℃~60℃
Storage temperature -40℃~80℃
Electromagnetism compatible GB/T 17626.2/3/4-2006
Shock resistance ≤10g/10Hz...500Hz(IEC 60068-2-6-2007)
Vibration resistance ≤50g/11ms(IEC 60068-2-27-2008)
Protection Rating IP65 / IP68



Competitive Advantages:

1. Founded in 2004, over 13 year professional research, developing and production experience;
2. Experienced and professional R&D team to provide customization services;
3. Producing transmitter core elements- PCB, supplying PCB for transmitter producers;
4. Highest accuracy up to 0.05%FS;
5. Various outputs I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other analog outputs;
6. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
