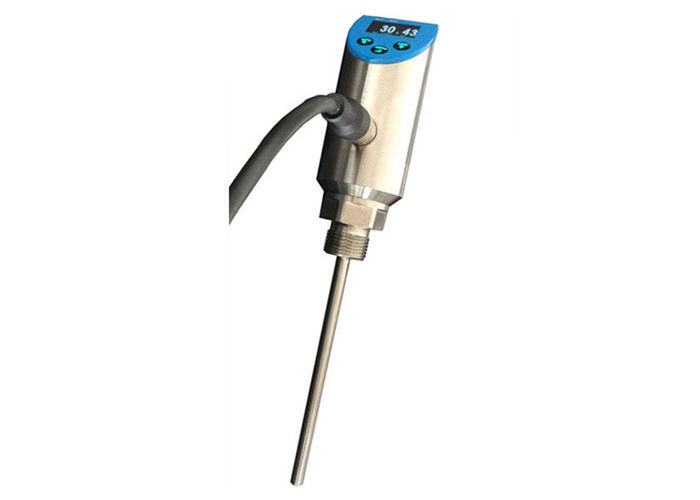

Smart 4-20mA 0-5V 0-10V Electronic Digital TTemperature Transmitter with PNP/NPN Switching and OLED Display

Smart 4-20mA 0-5V 0-10V Electronic Digital TTemperature Transmitter with PNP/NPN Switching and OLED Display
Smart 4-20mA 0-5V 0-10V Electronic Digital TTemperature Transmitter with PNP/NPN Switching and OLED Display

Large Image :  Smart 4-20mA 0-5V 0-10V Electronic Digital TTemperature Transmitter with PNP/NPN Switching and OLED Display

Product Details:
Place of Origin: Anhui, China
Brand Name: WNK
Certification: ISO9001
Model Number: STS
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Standard export carton packing
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000pcs per month
Detailed Product Description
Measuring Rang: -50...260 Deg C Accuracy: ≤±0.5℃
Output: 4-20mA, 0-5V, 0-10V Power Supply: 12-30V DC
Ingress Protection: IP65 Working Temp: -30~80 Deg C
Display: OLED Input: PT100, PT1000
High Light:

pt100 temperature transmitter

,

pump control switch





Smart 4-20mA 0-5V 0-10V Electronic Digital TTemperature Transmitter with PNP/NPN Switching and OLED Display



The temperature switch STS is robustly designed and very easy to use. The STS is suited for temperature monitoring, measurement and control, such as used in cleaning liquid, hydraulic oil, heat-carrying agent and lubricant etc. It is temperature switch, transmitter and display in one and the same device. In its standard configuration it has optional two switching outputs (PNP or NPN), an analog output signal (0...20mA| 4…20 mA or 0...5V| 0…10 V) as well as with RS485 Link.



STS temperature switch supports PT100 or PT1000, it is with high measuring accuracy of 0.5℃. STS offers various functions including switch delay, switch point settable, display environment temperature, housing and display turnable and rotatable.



Feature:

  • Support PT100 or PT1000 input
  • Current output is 4~20mA+2PNP+MODBUS; voltage output is 0~5V/10V+ 2PNP+ MODBUS
  • Switching points settable
  • Analog output span settable
  • OLED self-luminous display
  • Display reversing 180°
  • Switching can be set normally open / normally closed
  • Housing with electrical connection against process connection rotatable 330°
  • Displaying temperature peak value and environment temperature
  • Parameters setting for Password protection
  • MODBUS protocol optional



Technical Data:



Measuring range -50~260℃
Accuracy ≤0.5℃
Supply Power 12-30V DC
Temp. Error ±0.02%FS/℃
Long-term Stability ±0.3%FS/Year
Analog output accuracy ±0.2%FS
Measuring Media Water, mineral-based hydraulic fluid and Synthetic oil
Wetted material Stainless steel, Nitrile Butadiene Rubber and PTFE

Output Configurations



switching+voltage+ communication 2×PNP + 0V~5VDC/10VDC + MODBUS
switching+current+ communication 2×PNP + 0mA/4mA~20mADC + MODBUS
Switching current 1.0A(Max.)
Switching type normally open , normally closed (settable)
Switching respond time <10ms
Switching delay 0.00s~1000.0s
Switching motion mode delay or windows mode
Analog signal output and maximum ohmic load RL Current output 0/4…20mA,20…4/0mA RL≤0.5kΩ
Voltage output 0…5/10V,5/10…0V RL>10kΩ
Screen display OLED
Menu language Chinese,English
Switching instruction 2X Red LED
Displaying pressure units kPa, mm, cm, m
Working temperature -30℃~80℃
Media temperature 0℃~60℃
Storage temperature -40℃~80℃
Electromagnetism compatible GB/T 17626.2/3/4-2006
Shock resistance ≤10g/10Hz...500Hz(IEC 60068-2-6-2007)
Vibration resistance ≤50g/11ms(IEC 60068-2-27-2008)
Protection Rating IP65 / IP68









Ordering sheet:

Smart 4-20mA 0-5V 0-10V Electronic Digital TTemperature Transmitter with PNP/NPN Switching and OLED Display 0
