Product Details:
Payment & Shipping Terms:
|
| Pressure Range: | 0-7Mpa | Output: | 4-20mA |
|---|---|---|---|
| Measured Media: | Gas Water Steam | Housing Material: | 304SST |
| Stability: | ±0.25% FS/year | Operating Temperature: | -40~85 ℃ |
| Process Connection: | M20x1.5; 1/2-18NPT, 1/4NPT, G1/4, Customize | Electrical Connection: | Direct Cable,M12*4P |
| High Light: | 7Mpa Pressure Temperature Sensor,SST304 Pressure Temperature Sensor,IP67 Pressure Temperature Sensor |
||
4-20ma Output Stainless Steel Pressure Temperature Sensor Transducer For Water Gas Steam
Product Description
There is an increasing demand for sensors that can measure temperature and pressure simultaneously.
WNK81TP integrates temperature and pressure measurement in the one sensor, which saves the material cost of the sensor and is convenient for users. It also brings convenience to field installation.
1. Temperature range: -40 to 120℃
2.Pressure range 0-40kpa~70bar
3. High performance diffusion silicon oil-filled sensor
4. Various 4~20mA/0.5~4.5V/1~5V/ 0~5V/ I²C + PT100 outputs available
5. Small dimensions, dimension customizble
6. Direct cable outlet,M12
7. OEM, ODM, customization service available
8. Process connector: G1/4, M12*1.5, 1/4NPT
Product Parameters
| Measurement | Gauge Pressure Absolute Pressure |
| Range | 0-40Kpa-7Mpa/ 0.-0.4Bar-70Bar |
| Analog Signal | 0.5-4.5V 4-20MA PT100 |
| Digital Output | I2C PT100 |
| Accuracy | 0.5% 0.2% PT100B |
| Housing Material | SST304 |
| Protection | IP65/IP67 |

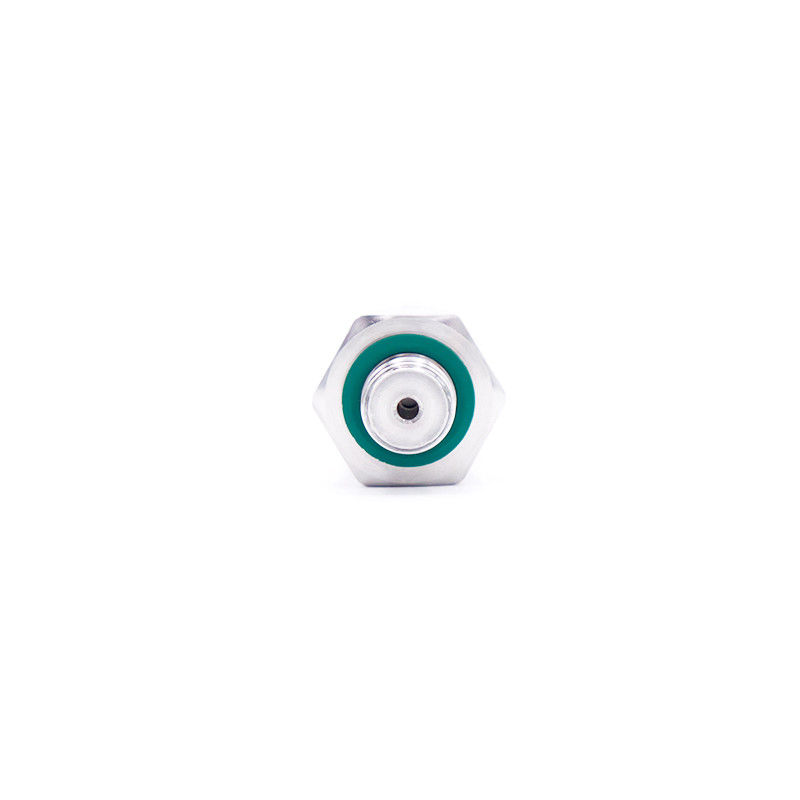

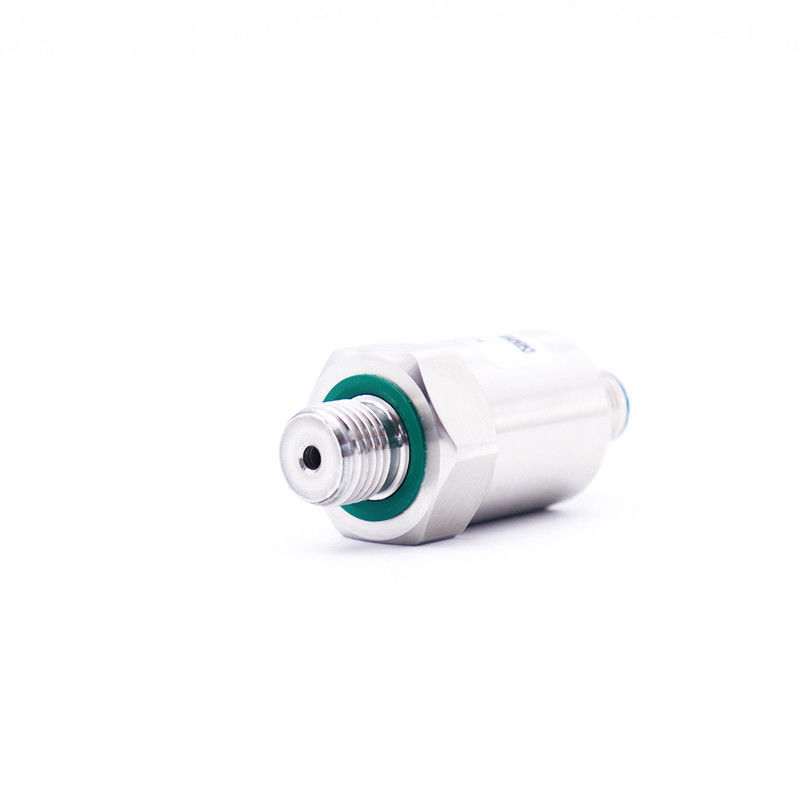

Product Display
Company Information
FAQ
Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer with more than 13 years of experience. Our factory address is: 4/F,Bldg #6, No.168, Xiangzhang Road, High-tech District, 230088, Hefei, Anhui province, China.
Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome
Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.
Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
