IP65 304SST Oil Gas Pressure Sensor For Air Compressor HVAC Water Pump

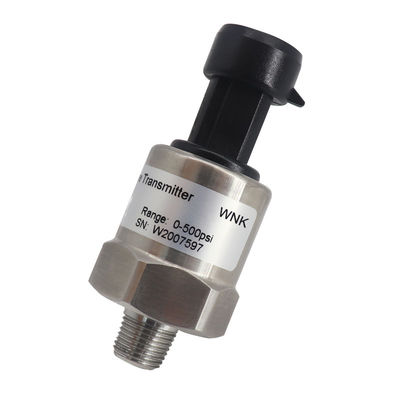

Large Image : IP65 304SST Oil Gas Pressure Sensor For Air Compressor HVAC Water Pump

Product Details:

Place of Origin:	Hefei, China
Brand Name:	WNK
Certification:	CE, SGS, ISO9001
Model Number:	WNK80MA-P

Payment & Shipping Terms:

Minimum Order Quantity:	5 piece
Price:	Negotiable
Packaging Details:	Standard Export Packaging
Delivery Time:	7-10 working days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	5000 pcs per month

Contact Now

Detailed Product Description

Pressure Range:	0- 6Mpa	Accuracy Grade:	0.5%, 1.0%FS
Media:	Gas, Air, Water, Oil, Lubricant	IP Proof:	IP67
Response Time:	<2ms	Power:	5VDC, 9-30VDC
Working Temperature:	-40C - 40C
High Light:	IP65 gas pressure sensor , 304SST gas pressure sensor , 304SST Oil Pressure Sensor

IP65 304SST Oil Gas Pressure Sensor For Air Compressor HVAC Water Pump

Quick Information

WNK80MA Gauge/Absolute/Sealing Pressure Transmitter
WNK80MA integral pressure transmitter adopts stainless steel shell structure, built in stainless steel oil filled sensor, intelligent digital circuit with precise temperature characteristic compensation, it can be used reliably and stably

Specifications

Applicable media	Liquid, Gas
Pressure range	0-20kPa~350bar
Pressure measurment	Gauge Pressure, Absolute pressure, Sealing pressure
Output	4-20mA/0.5-4.5V/1 -5V/0-5V
Accuracy(linearity,Hysteresis and Repeatability)	0.5%F.S.(Typical)
Power supply	24VDC/12VDC/5VDC
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
power(electrical) connect	Parker joint, customization
Mechanical connection	G1/4, 1/8NPT,M12*1.5, customize
Housing material	304 stainless steel(inner core is 316 stainless steel)
Protection	IP65

Application:

- Automobile, Compressor and Refrigeration Industry
- Engineering machinery
- Water treatment system
- Hydraulic and Pneumatics
- HAVC and BAS Control
- Pump, fitness equipment, household appliances

IP65 304SST Oil Gas Pressure Sensor For Air Compressor HVAC Water Pump 0
