Product Details:
Payment & Shipping Terms:
|
| Output: | 24VDC/12VDC/5VDC/3.3V | Pressure Range: | 0~15MPa |
|---|---|---|---|
| Measured Media: | Liquid, Gas And Steam | Electrical Connection: | Packard, M12, DIN43650, Cable |
| Housing Material: | Alunimum/Brass/SST 304 | Key Words: | Pressure Sensor |
| IP Rate: | IP65 | Prorocess Conection: | G1/2, G1/4, M2x1.5NPT1/4, Customization |
| High Light: | SS 304 Housing Pressure Sensor,0.5-4.5V I2C Pressure Sensor,6Mpa Compact Pressure Sensor |
||

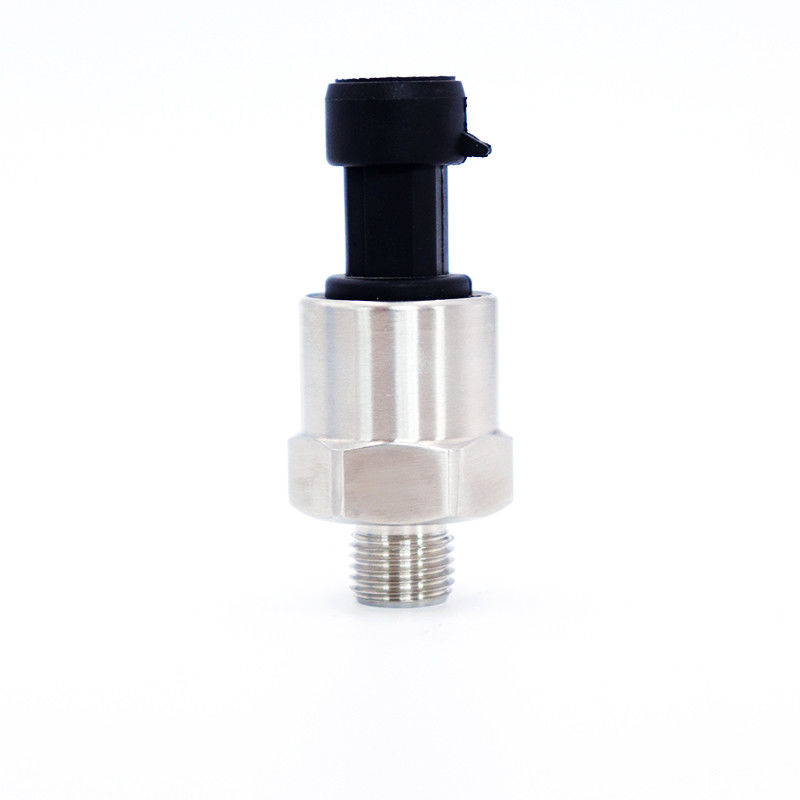

WNK 4-20ma 0.5-4.5V I2C 0-6Mpa Pressure Sensor For Water Treatment System
WNK 0-6Mpa Water Pressure Sensor For Treatment System
| Input | |
| Pressure Type | Gauge Pressure , Absolute Pressure, Sealing Pressure |
| Pressure Range | 0-60bar |
| Accuracy | 0.2%, 0.5% |
| Power Supply | 5VDC, 12-32VDC |
| Measuring Media | Gas, Steam, Liquid, Oil |
| Output | |
| Analog | 4-20mA, 0.5-4.5V / 1-5V / 0-5V |
| Digital | I2C, SPI |
| Operation Condition and Temperature | |
| Compensation Temperature | -20...75℃ |
| Storage Temperature | -45 ... 85℃ |
| Ambient Temperature | -45 ... 85℃ |
| Medium Temperature | -40 ... 125℃ |
| Material and Protection | |
| Ingress Protection | IP65, IP67 |
| Housing Material | 304SS, 316L |
| >>> Applications |
| - Automobile, Compressor and Refrigeration Industry |
| - Engineering machinery |
| - Pressure control and monitor |
| - Water treatment system |
| - Hydraulic and Pneumatics |
| - HAVC and BAS Control |
| - Pump, fitness equipment, household appliances |
| - Factory Automation |
| - Fluid Control and Instrumentation Systems |
